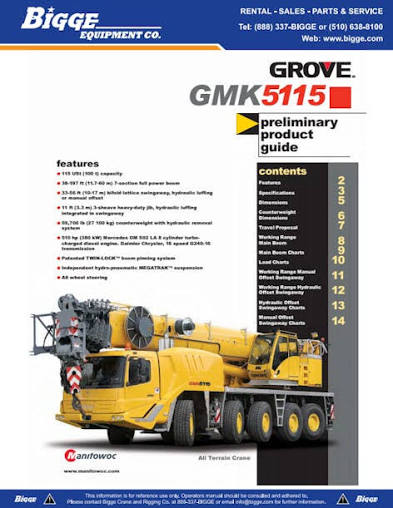

GMK5115

Specifications

35 data points

Operating Specifications specifications
Operating Weight	132,277 lb
Tire Size	10 tires 16R25
Carrier Fuel Capacity	105.7 gal
Operating Voltage	28 V
Number of Axels	6
Alternator Supplied Amperage	80 A
Carrier Hydraulic System Fluid Capacity	158.6 gal

Dimensions specifications
Ground Clearance	19 in
Transport Width	98 in
Transport Height	152 in
Transport Length	531 in
Width w/ Outriggers Extended	296 in
Upper Structure Tail Swing Radius	154 in
Carrier Length	483 in

Transmission specifications
Transmission Type	Daimler Chrysler
Number of Forward Gears	16

Boom specifications
Max Lift Capacity	230,000 lb
Number of Sections	7
Max Height @ Max Raise Angle - no jib	2,363 in
Min Height @ Max Raise Angle	461 in
Max Elevating Angle	82 °
Swing Speed	2 rpm
Min Working Radius	96 in
Max Working Radius	2,100 in
Height	3,337 in
