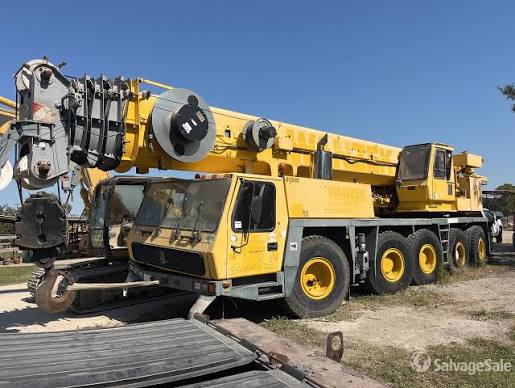

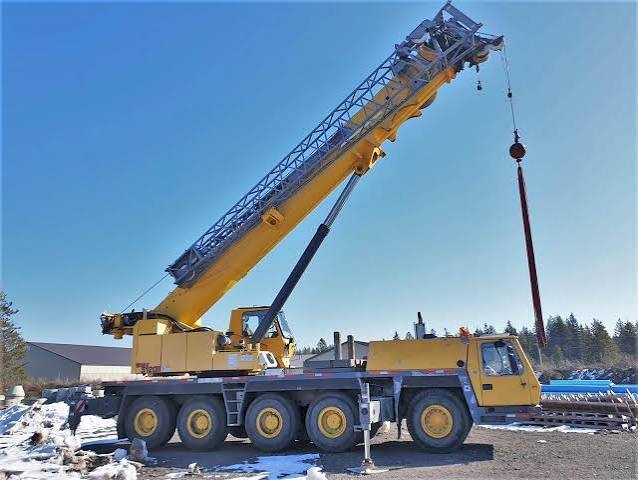

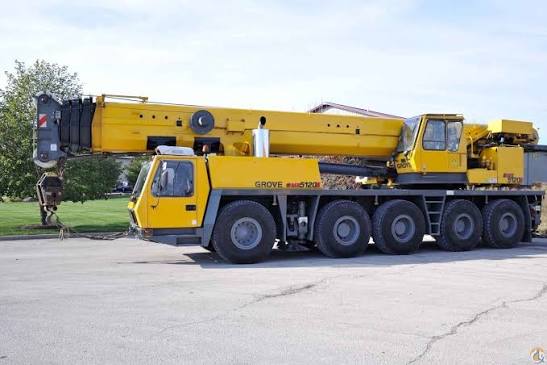

GMK5120B

Specifications

34 data points

Operating Specifications specifications
Operating Weight	120,988 lb
Tire Size	20.5R25
Carrier Fuel Capacity	105.7 gal
Operating Voltage	24 V
Number of Axels	5
Alternator Supplied Amperage	100 A
Upper Structure Fuel Capacity	52.9 gal

Dimensions specifications
Transport Width	121 in
Transport Height	155 in
Transport Length	570 in
Width w/ Outriggers Extended	296 in
Upper Structure Tail Swing Radius	167 in
Carrier Length	470 in

Boom specifications
Number of Sections	5
Max Height @ Max Raise Angle - no jib	2,004 in
Min Height @ Max Raise Angle	504 in
Max Elevating Angle	83 °
Swing Speed	2 rpm
Min Working Radius	96 in
Max Working Radius	1,800 in
