Grove

GMK5135

All Terrain Crane

Gross Power
502.9 hp
Max Lift Capacity
270,000 lb
Max Speed - Forward
53.0 mph
Transport Width
98 in
All all terrain cranes

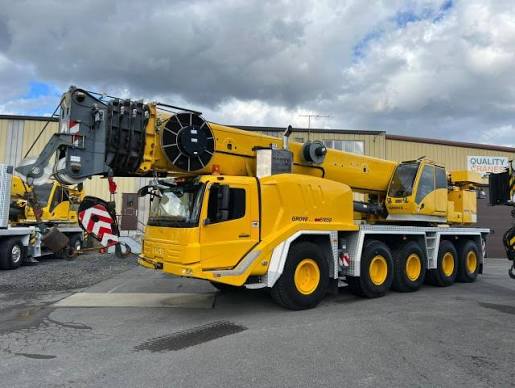

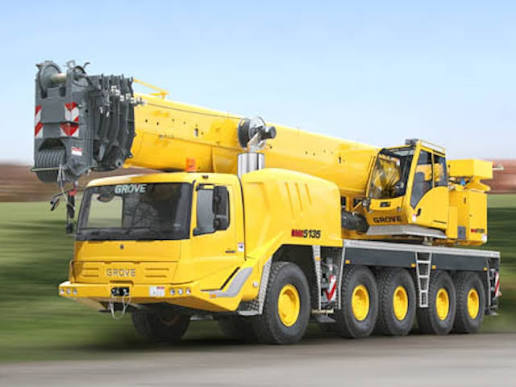

Grove GMK5135 All Terrain Crane
1 / 5
Image 1 of 5
Image: cranenetwork.com

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Operating Weight132,277 lb
Tire Size445/95 R 25
Carrier Fuel Capacity52.9 gal
Operating Voltage24 V
Alternator Supplied Amperage80 A
Carrier Hydraulic System Fluid Capacity222.0 gal

Dimensions

Dimensions specifications
Ground Clearance19 in
Transport Width98 in
Transport Height119 in
Transport Length592 in
Width w/ Outriggers Extended296 in
Upper Structure Tail Swing Radius173 in
Carrier Length483 in

Transmission

Transmission specifications
Max Speed - Forward53.0 mph
Transmission TypeDaimler Chrysler 16-speed G240-16

Boom

Boom specifications
Max Lift Capacity270,000 lb
Number of Sections5
Max Elevating Angle83 °
Swing Speed2 rpm
Min Working Radius93 in
Max Working Radius125 in
Height3,465 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power502.9 hp
Max Torque1,770 lb-ft
Torque Measured @1,300 rpm
MakeGrove
Power Measured @1,800 rpm

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
Gross Power173.0 hp
MakeGrove
Max Torque498 lb-ft
Torque Measured @1,200 rpm
Power Measured @2,200 rpm
