Grove

GMK5150B

All Terrain Crane

Gross Power
496.2 hp
Max Speed - Forward
46.0 mph
Transport Width
119 in
All all terrain cranes

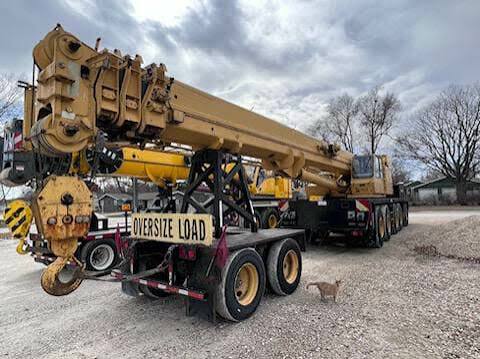

Grove GMK5150B All Terrain Crane
1 / 5
Image 1 of 5
Image: cranenetwork.com

Specifications

35 data points

Operating Specifications

Operating Specifications specifications
Operating Weight117,639 lb
Tire Size20.5x25
Carrier Fuel Capacity105.7 gal
Operating Voltage24 V
Number of Axels5
Alternator Supplied Amperage55 A
Upper Structure Fuel Capacity52.9 gal

Dimensions

Dimensions specifications
Transport Width119 in
Transport Height150 in
Transport Length628 in
Width w/ Outriggers Extended324 in
Upper Structure Tail Swing Radius168 in
Carrier Length521 in

Transmission

Transmission specifications
Max Speed - Forward46.0 mph
Transmission TypeAllison automatic CLBT 755 powershift
Number of Forward Gears5
Number of Reverse Gears1

Boom

Boom specifications
Number of Sections4
Max Height @ Max Raise Angle - no jib1,812 in
Min Height @ Max Raise Angle552 in
Max Elevating Angle84 °
Swing Speed2 rpm
Min Working Radius108 in
Max Working Radius1,620 in
Height3,192 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power496.2 hp
Max Torque2,020 lb-ft
Torque Measured @1,600 rpm
MakeGrove
Power Measured @1,800 rpm

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
Gross Power139.5 hp
MakeGrove
Max Torque417 lb-ft
Torque Measured @1,600 rpm
Power Measured @2,100 rpm
