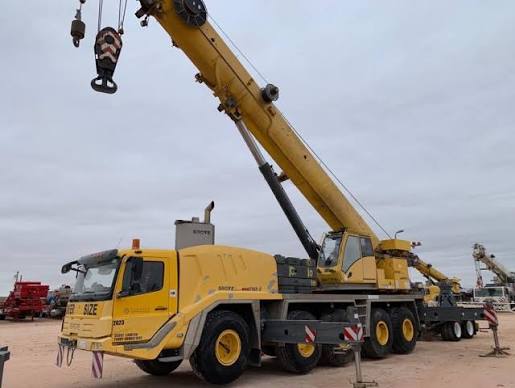

GMK5165

Specifications

35 data points

Operating Specifications specifications
Operating Weight	109,945 lb
Tire Size	20.5R25
Carrier Fuel Capacity	105.7 gal
Operating Voltage	24 V
Number of Axels	5
Alternator Supplied Amperage	80 A

Dimensions specifications
Transport Width	109 in
Transport Height	155 in
Transport Length	594 in
Width w/ Outriggers Extended	296 in
Upper Structure Tail Swing Radius	175 in
Carrier Length	575 in

Boom specifications
Max Lift Capacity	215,000 lb
Number of Sections	6
Max Height @ Max Raise Angle - no jib	2,364 in
Min Height @ Max Raise Angle	504 in
Max Elevating Angle	83 °
Swing Speed	2 rpm
Min Working Radius	96 in
Max Working Radius	2,160 in
