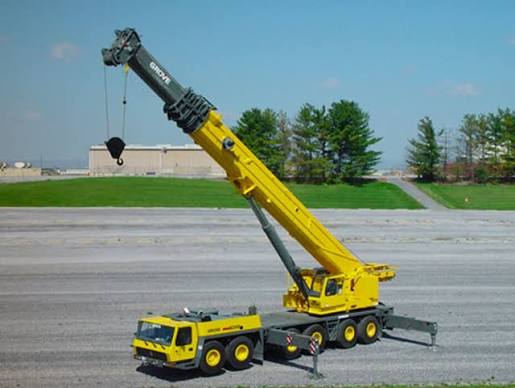

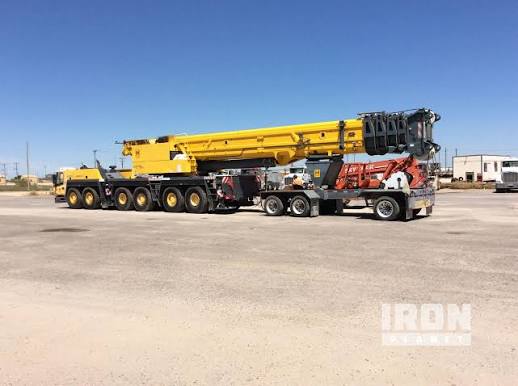

GroveKrupp
KMK5110
All Terrain Crane
36 specifications
1 / 5
Image 1 of 5
Specifications
37 data points
Operating Specifications
| Operating Weight | 158,883 lb |
|---|---|
| Tire Size | 20.5R25 |
| Carrier Fuel Capacity | 132.1 gal |
| Operating Voltage | 24 V |
| Number of Axels | 6 |
| Alternator Supplied Amperage | 80 A |
| Upper Structure Fuel Capacity | 87.2 gal |
| Carrier Hydraulic System Fluid Capacity | 322.3 gal |
Dimensions
| Transport Width | 121 in |
|---|---|
| Transport Height | 158 in |
| Transport Length | 775 in |
| Width w/ Outriggers Extended | 335 in |
| Upper Structure Tail Swing Radius | 251 in |
| Carrier Length | 606 in |
Transmission
| Max Speed - Forward | 47.9 mph |
|---|---|
| Transmission Type | Allison automatic CLT 755 |
| Number of Forward Gears | 5 |
| Number of Reverse Gears | 1 |
Boom
| Number of Sections | 5 |
|---|---|
| Max Height @ Max Raise Angle - no jib | 2,364 in |
| Min Height @ Max Raise Angle | 612 in |
| Max Elevating Angle | 82 ° |
| Swing Speed | 2 rpm |
| Min Working Radius | 96 in |
| Max Working Radius | 2,160 in |
CARRIER ENGINE
| Gross Power | 563.3 hp |
|---|---|
| Max Torque | 1,991 lb-ft |
| Torque Measured @ | 1,080 rpm |
| Make | Grove |
| Power Measured @ | 1,800 rpm |
UPPER STRUCTURE ENGINE
| Gross Power | 275.0 hp |
|---|---|
| Make | Grove |
| Max Torque | 811 lb-ft |
| Torque Measured @ | 1,300 rpm |
| Power Measured @ | 1,800 rpm |
| Number of cylinders | 6 |
| Cooling System | Water cooled |
