Grove

GRT655

Rough Terrain Crane

Operating Weight
75,641 lb
Max Lift Capacity
110,000 lb
Gross Power
164.0 hp
All rough terrain cranes

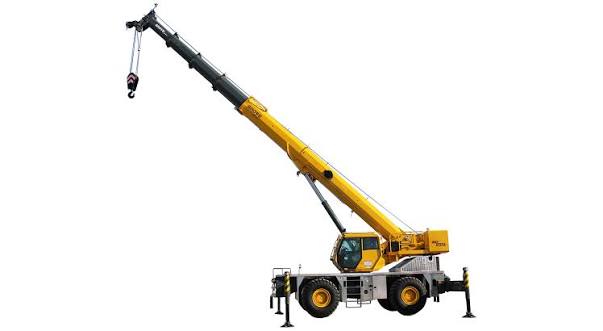

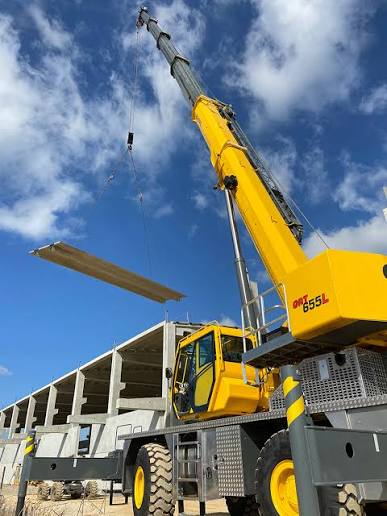

Grove GRT655 Rough Terrain Crane
1 / 5
Image 1 of 5
Image: wppecrane.com

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Operating Weight75,641 lb
Fuel Capacity64.5 gal
Tire Size23.5 x 25 ââ?¬â?? 24 Bias ply rating

Engine

Engine specifications
Engine ModelQSB6
Displacement427 in³
Power Measured @2,300 rpm
Gross Power164.0 hp
AspirationTurbo-charged
Torque Measured @1,500 rpm
Max Torque540 lb-ft
Engine MakeCummins
Emissions CertificationTier 4F
Cylinders6

Weights

Weights specifications
Counterweight12,300 lb

Dimensions

Dimensions specifications
Ground Clearance19 in
Wheelbase150 in
Transport Width110 in
Transport Height138 in
Transport Length504 in
Width w/ Outriggers Extended269 in
Gradeability75.2 %
Carrier/Base Length318,269 in

Transmission

Transmission specifications
Max Speed18.8 mph
Number of Forward Gears6
Number of Reverse Gears6
Transmission TypeRangeshift

Boom

Boom specifications
Max Lift Capacity110,000 lb
Max Height @ Max Raise Angle - no jib1,500 in
Min Height @ Max Raise Angle1,372 in
Max Elevating Angle80 °
Number of Sections4

Swing Mechanism

Swing Mechanism specifications
Swing Speed2 rpm
