Grove

GRT880

Rough Terrain Crane

Operating Weight
90,670 lb
Max Lift Capacity
110,000 lb
Gross Power
275.0 hp
All rough terrain cranes

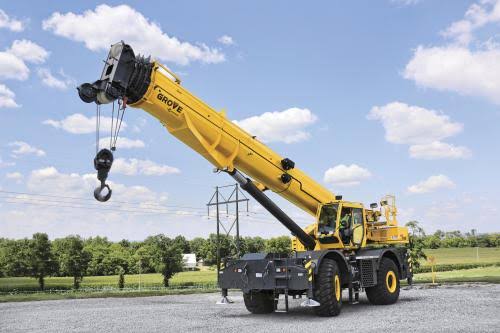

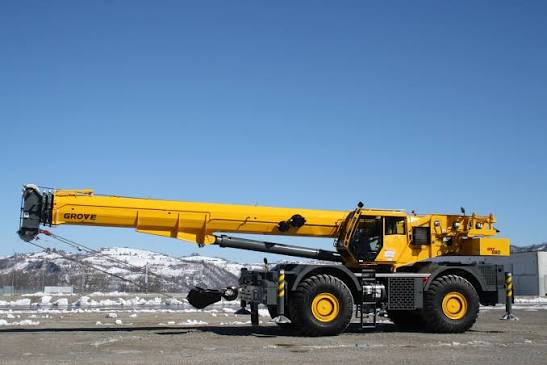

Grove GRT880 Rough Terrain Crane
1 / 5
Image 1 of 5
Image: manitowoc.com

Specifications

35 data points

Operating Specifications

Operating Specifications specifications
Operating Weight90,670 lb
Fuel Capacity82.5 gal
Tire Size23.5 x 25 ââ?¬â?? 24 Bias ply rating

Engine

Engine specifications
Engine ModelQSB6
Displacement427 in³
Power Measured @2,500 rpm
Gross Power275.0 hp
AspirationTurbo-charged
Torque Measured @1,500 rpm
Max Torque730 lb-ft
Engine MakeCummins
Emissions CertificationTier 4F
Cylinders6

Weights

Weights specifications
Counterweight22,000 lb

Dimensions

Dimensions specifications
Wheelbase100 in
Transport Width132 in
Transport Height148 in
Transport Length595 in
Width w/ Outriggers Extended289 in
Gradeability70.0 %
Carrier/Base Length318,269 in

Transmission

Transmission specifications
Max Speed24.1 mph
Number of Forward Gears6
Number of Reverse Gears6
Transmission TypeRangeshift

General Specifications

General Specifications specifications
Lift Capacity Tons (metric tons)80 (73) — Starting 2017 Model Year
Lift Height Ft. (m)134.7 (41.1) — Starting 2017 Model Year

Boom

Boom specifications
Max Lift Capacity110,000 lb
Max Height @ Max Raise Angle - no jib869 in
Min Height @ Max Raise Angle494 in
Max Elevating Angle80 °
Number of Sections4
Min Operating Radius240 in
Max Operating Radius360 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed2 rpm
