Grove

IND-24

Carrydeck Crane

Operating Weight
13,000 lb
Max Lift Capacity
12,000 lb
Max Speed - Forward
15.1 mph
All carrydeck cranes

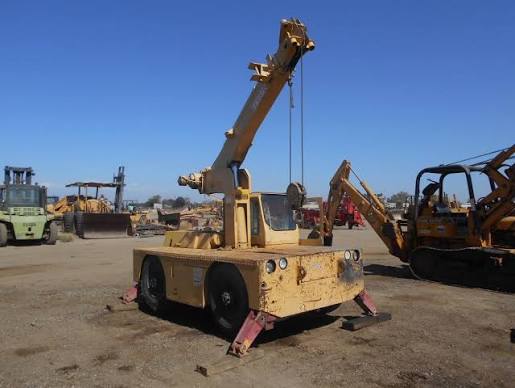

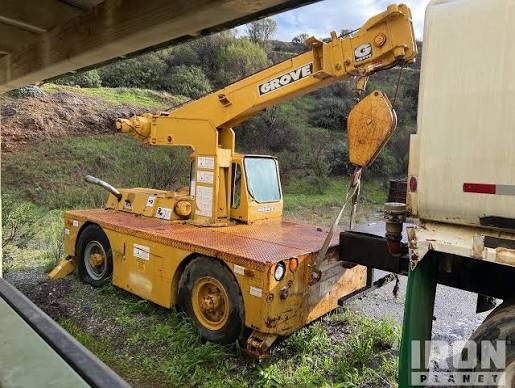

Grove IND-24 Carrydeck Crane
1 / 5
Image 1 of 5
Image: cranetrader.com

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Operating Weight13,000 lb
Operating Voltage12 V
Tire Size10.00x15-14PR
Carrier Fuel Capacity20.1 gal
Number of Axels2
Alternator Supplied Amperage42 A
Carrier Hydraulic System Fluid Capacity32.5 gal

Dimensions

Dimensions specifications
Ground Clearance7 in
Transport Width74 in
Transport Height91 in
Transport Length167 in
Width w/ Outriggers Extended98 in
Upper Structure Tail Swing Radius55 in
Carrier Length133 in

Transmission

Transmission specifications
Max Speed - Forward15.1 mph
Transmission TypeFunk powershift
Number of Forward Gears3
Number of Reverse Gears3

Boom

Boom specifications
Max Lift Capacity12,000 lb
Max Elevating Angle60 °
Max Height @ Max Raise Angle - no jib240 in
Min Height @ Max Raise Angle108 in
Number of Sections3
Swing Speed3 rpm
Max Working Radius331 in
Min Working Radius72 in

CARRIER ENGINE

CARRIER ENGINE specifications
Net Power61.0 hp
Displacement204 in³
MakeGrove
Power Measured @2,250 rpm
Max Torque172 lb-ft
Torque Measured @1,250 rpm
