Grove

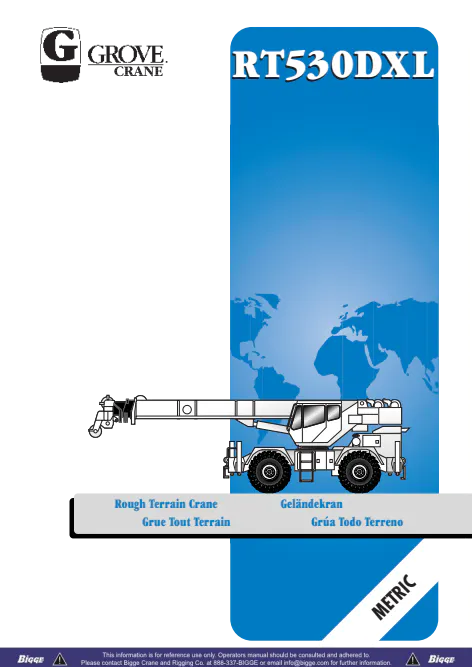

RT530DXL
- Operating Weight
- 61,289 lb
- Max Lift Capacity
- 66,139 lb
- Max Speed - Forward
- 24.3 mph
- Gross Power
- 144.9 hp
1 / 5
Image 1 of 5
Specifications
34 data points
Operating Specifications
| Operating Weight | 61,289 lb |
|---|---|
| Fuel Capacity | 60.0 gal |
| Tire Size | 20.5R25 |
| Operating Voltage | 24 V |
| Hydraulic System Fluid Capacity | 120.0 gal |
Engine
| Engine Model | 6BT5.9L |
|---|---|
| Displacement | 360 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 144.9 hp |
| Number of Cylinders | 6 |
| Aspiration | turbocharged |
| Torque Measured @ | 1,600 rpm |
| Max Torque | 400 lb-ft |
| Engine Make | Cummins |
Dimensions
| Wheelbase | 11 in |
|---|---|
| Transport Width | 119 in |
| Transport Height | 138 in |
| Transport Length | 47 in |
| Width w/ Outriggers Extended | 240 in |
| Upper Structure Tail Swing Radius | 134 in |
| Carrier/Base Length | 270 in |
Transmission
| Max Speed - Forward | 24.3 mph |
|---|---|
| Max Speed - Reverse | 7.1 mph |
| Number of Forward Gears | 8 |
| Number of Reverse Gears | 4 |
| Transmission Type | Funk powershift DF 150 |
Boom
| Max Lift Capacity | 66,139 lb |
|---|---|
| Max Height @ Max Raise Angle - no jib | 1,079 in |
| Min Height @ Max Raise Angle | 386 in |
| Max Elevating Angle | 78 ° |
| Number of Sections | 4 |
| Swing Speed | 3 rpm |
| Min Operating Radius | 119 in |
| Max Operating Radius | 1,103 in |
