GroveGrove
RT625
Rough Terrain Crane
38 specifications

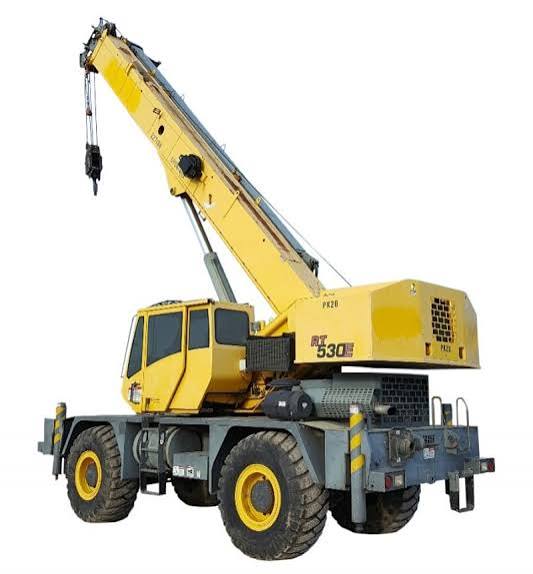

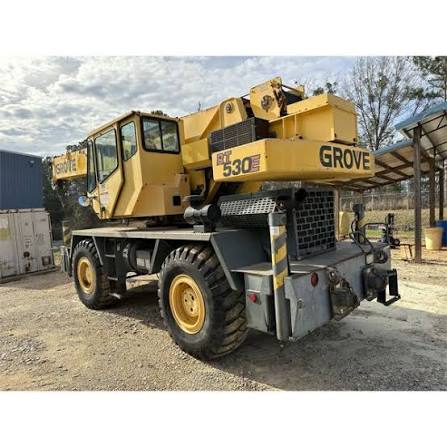

Grove
RT530E
- Operating Weight
- 54,483 lb
- Max Lift Capacity
- 60,000 lb
- Max Speed - Forward
- 24.3 mph
- Gross Power
- 155.0 hp
1 / 5
Image 1 of 5
Specifications
32 data points
Operating Specifications
| Operating Weight | 54,483 lb |
|---|---|
| Fuel Capacity | 58.2 gal |
| Tire Size | 20.5X25-24PR |
| Operating Voltage | 24 V |
| Hydraulic System Fluid Capacity | 90.1 gal |
Engine
| Engine Model | QSB 5.9L |
|---|---|
| Displacement | 360 in³ |
| Power Measured @ | 2,500 rpm |
| Gross Power | 155.0 hp |
| Aspiration | turbocharged |
| Torque Measured @ | 1,500 rpm |
| Max Torque | 440 lb-ft |
Dimensions
| Ground Clearance | 1 in |
|---|---|
| Wheelbase | 11 in |
| Transport Width | 102 in |
| Transport Height | 141 in |
| Transport Length | 422 in |
| Width w/ Outriggers Extended | 240 in |
| Upper Structure Tail Swing Radius | 134 in |
| Carrier/Base Length | 271 in |
Transmission
| Max Speed - Forward | 24.3 mph |
|---|---|
| Number of Forward Gears | 6 |
| Number of Reverse Gears | 6 |
| Transmission Type | full powershift |
Boom
| Max Lift Capacity | 60,000 lb |
|---|---|
| Max Height @ Max Raise Angle - no jib | 1,140 in |
| Min Height @ Max Raise Angle | 348 in |
| Max Elevating Angle | 76 ° |
| Number of Sections | 4 |
| Swing Speed | 3 rpm |
| Min Operating Radius | 120 in |
| Max Operating Radius | 1,020 in |
