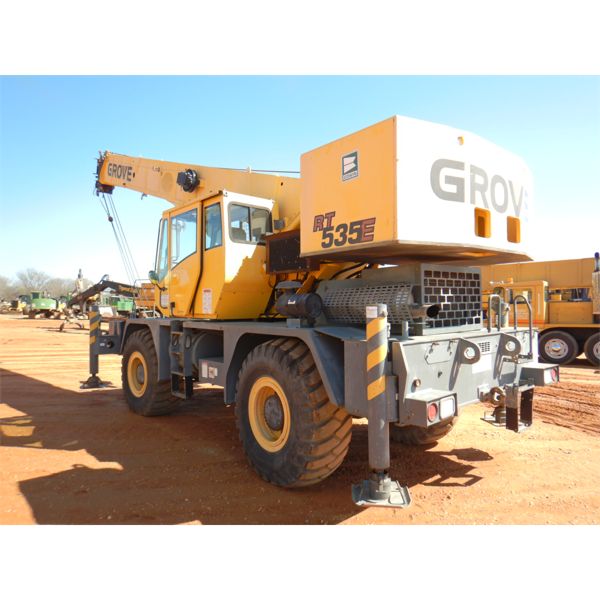

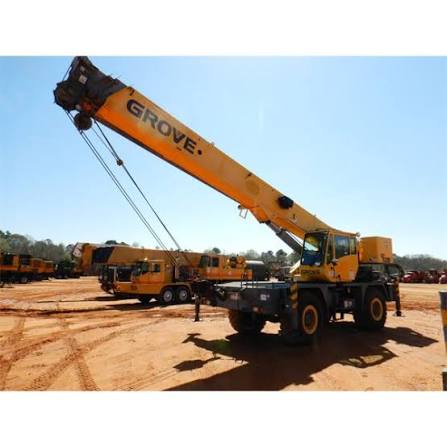

Grove
RT535E
- Operating Weight
- 59,135 lb
- Max Lift Capacity
- 70,000 lb
- Max Speed - Forward
- 24.9 mph
- Gross Power
- 155.6 hp
1 / 5
Image 1 of 5
Specifications
32 data points
Operating Specifications
| Operating Weight | 59,135 lb |
|---|---|
| Fuel Capacity | 58.0 gal |
| Tire Size | 20.5x25-24 bias |
| Operating Voltage | 12 V |
| Hydraulic System Fluid Capacity | 104.7 gal |
Engine
| Engine Model | QSB 5.9L |
|---|---|
| Displacement | 360 in³ |
| Power Measured @ | 2,500 rpm |
| Gross Power | 155.6 hp |
| Torque Measured @ | 1,500 rpm |
| Max Torque | 440 lb-ft |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Wheelbase | 12 in |
| Transport Width | 103 in |
| Transport Height | 128 in |
| Transport Length | 465 in |
| Width w/ Outriggers Extended | 240 in |
| Upper Structure Tail Swing Radius | 145 in |
| Carrier/Base Length | 280 in |
Transmission
| Max Speed - Forward | 24.9 mph |
|---|---|
| Max Speed - Reverse | 24.9 mph |
| Number of Forward Gears | 6 |
| Number of Reverse Gears | 6 |
| Transmission Type | Range-shift |
Boom
| Max Lift Capacity | 70,000 lb |
|---|---|
| Max Height @ Max Raise Angle - no jib | 1,224 in |
| Min Height @ Max Raise Angle | 384 in |
| Max Elevating Angle | 78 ° |
| Number of Sections | 4 |
| Swing Speed | 2 rpm |
| Min Operating Radius | 120 in |
| Max Operating Radius | 1,140 in |
