Grove

RT58

Rough Terrain Crane

Operating Weight
38,800 lb
Max Lift Capacity
28,000 lb
Max Speed - Forward
29.5 mph
All rough terrain cranes

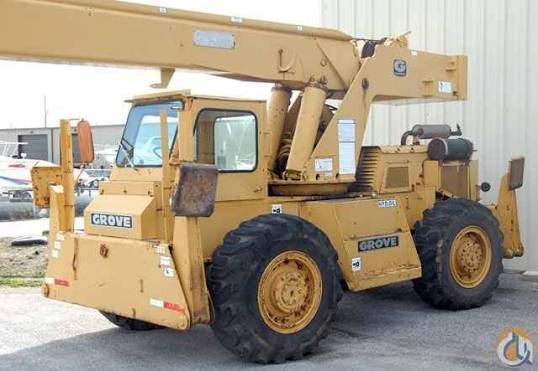

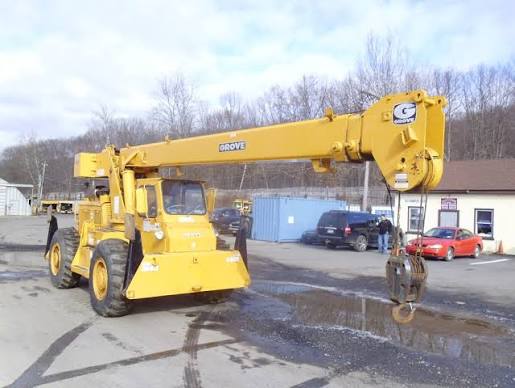

Grove RT58 Rough Terrain Crane
1 / 5
Image 1 of 5
Image: cranenetwork.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight38,800 lb
Fuel Capacity49.0 gal
Tire Size17.5X25
Operating Voltage12 V
Hydraulic System Fluid Capacity82.6 gal
Alternator Supplied Amperage38 A

Engine

Engine specifications
Engine Model300
Displacement300 in³
Power Measured @2,800 rpm
Net Power123.0 hp
Aspirationnatural
Torque Measured @1,800 rpm
Max Torque253 lb-ft

Weights

Weights specifications
Counterweight7,470 lb

Dimensions

Dimensions specifications
Ground Clearance17 in
Wheelbase10 in
Transport Width97 in
Transport Height126 in
Width w/ Outriggers Extended149 in
Upper Structure Tail Swing Radius100 in
Carrier/Base Length205 in

Transmission

Transmission specifications
Max Speed - Forward29.5 mph
Number of Forward Gears6
Number of Reverse Gears6
Transmission Typeremote mounted full powershift

Boom

Boom specifications
Max Lift Capacity28,000 lb
Max Height @ Max Raise Angle - no jib720 in
Min Height @ Max Raise Angle288 in
Max Elevating Angle75 °
Number of Sections3
Swing Speed3 rpm
