Grove

RT58B

Rough Terrain Crane

Operating Weight
43,345 lb
Max Lift Capacity
30,000 lb
Max Speed - Forward
23.7 mph
Gross Power
130.1 hp
All rough terrain cranes

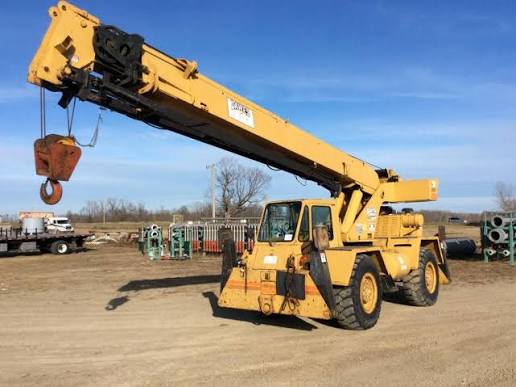

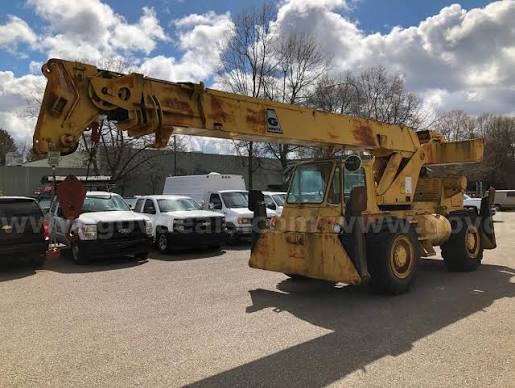

Grove RT58B Rough Terrain Crane
1 / 5
Image 1 of 5
Image: jmwood.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight43,345 lb
Fuel Capacity60.0 gal
Tire Size17.5X25-20PR
Operating Voltage12 V

Engine

Engine specifications
Engine Model6BT5.9L
Displacement360 in³
Power Measured @2,500 rpm
Gross Power130.1 hp
Aspirationturbocharged
Torque Measured @1,400 rpm
Max Torque386 lb-ft

Dimensions

Dimensions specifications
Ground Clearance13 in
Wheelbase10 in
Transport Width96 in
Transport Height126 in
Transport Length366 in
Width w/ Outriggers Extended192 in
Upper Structure Tail Swing Radius102 in
Carrier/Base Length229 in

Transmission

Transmission specifications
Max Speed - Forward23.7 mph
Number of Forward Gears6
Number of Reverse Gears6
Transmission Typeremote mounted powershift

Boom

Boom specifications
Max Lift Capacity30,000 lb
Max Height @ Max Raise Angle - no jib792 in
Min Height @ Max Raise Angle360 in
Max Elevating Angle75 °
Number of Sections3
Swing Speed3 rpm
Min Operating Radius144 in
Max Operating Radius660 in
