Grove

RT600E

Rough Terrain Crane

Operating Weight
71,692 lb
Max Lift Capacity
80,000 lb
Max Speed - Forward
24.3 mph
Gross Power
173.0 hp
All rough terrain cranes

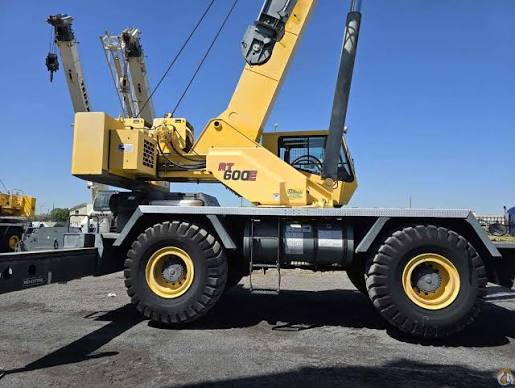

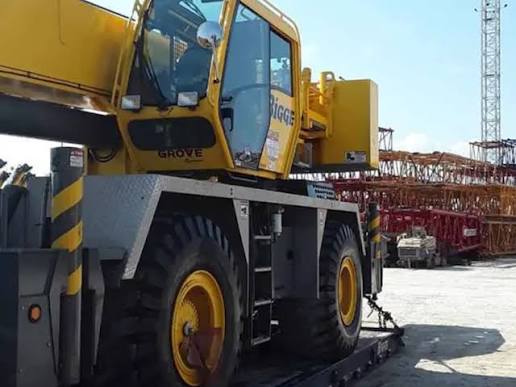

Grove RT600E Rough Terrain Crane
1 / 5
Image 1 of 5
Image: jjcurran.com

Specifications

37 data points

Operating Specifications

Operating Specifications specifications
Operating Weight71,692 lb
Fuel Capacity58.2 gal
Tire Size23.5x25-20PR
Operating Voltage24 V
Hydraulic System Fluid Capacity134.5 gal

Engine

Engine specifications
Engine ModelQSB 6.7 L
Displacement360 in³
Power Measured @2,500 rpm
Gross Power173.0 hp
Number of Cylinders6
Aspirationturbocharged
Torque Measured @1,500 rpm
Max Torque590 lb-ft
Engine MakeCummins

Dimensions

Dimensions specifications
Ground Clearance20 in
Wheelbase12 in
Transport Width97 in
Transport Height138 in
Transport Length400 in
Width w/ Outriggers Extended270 in
Upper Structure Tail Swing Radius155 in
Carrier/Base Length306 in

Transmission

Transmission specifications
Max Speed - Forward24.3 mph
Number of Forward Gears6
Number of Reverse Gears3
Transmission Typefull powershift

General Specifications

General Specifications specifications
Lift Capacity Tons (metric tons)50 (45.4) — Starting 2017 Model Year
Lift Height Ft. (m)105 (32) — Starting 2017 Model Year

Boom

Boom specifications
Max Lift Capacity80,000 lb
Max Height @ Max Raise Angle - no jib1,260 in
Min Height @ Max Raise Angle396 in
Max Elevating Angle78 °
Number of Sections4
Swing Speed3 rpm
Min Operating Radius120 in
Max Operating Radius1,140 in
Height1,944 in
