Grove

RT700B

Rough Terrain Crane

Operating Weight
72,797 lb
Max Speed - Forward
24.3 mph
Gross Power
177.1 hp
All rough terrain cranes

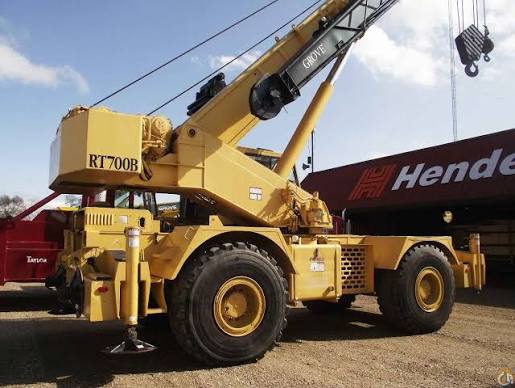

Grove RT700B Rough Terrain Crane
1 / 5
Image 1 of 5
Image: cranenetwork.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight72,797 lb
Fuel Capacity60.0 gal
Tire Size23.5R25
Operating Voltage12 V
Hydraulic System Fluid Capacity100.0 gal

Engine

Engine specifications
Engine Model6BTA5.9
Displacement360 in³
Power Measured @2,500 rpm
Gross Power177.1 hp
Number of Cylinders6
Aspirationturbocharged
Torque Measured @1,500 rpm
Max Torque447 lb-ft
Engine MakeCummins

Dimensions

Dimensions specifications
Ground Clearance22 in
Wheelbase13 in
Transport Width119 in
Transport Height133 in
Transport Length502 in
Width w/ Outriggers Extended288 in
Upper Structure Tail Swing Radius162 in
Carrier/Base Length291 in

Transmission

Transmission specifications
Max Speed - Forward24.3 mph
Number of Forward Gears6
Number of Reverse Gears3
Transmission Typefull powershift

Boom

Boom specifications
Max Height @ Max Raise Angle - no jib1,320 in
Min Height @ Max Raise Angle420 in
Max Elevating Angle78 °
Number of Sections4
Swing Speed3 rpm
