Grove

RT700E

Rough Terrain Crane

Operating Weight
85,138 lb
Max Lift Capacity
100,000 lb
Max Speed - Forward
23.0 mph
Gross Power
240.1 hp
All rough terrain cranes

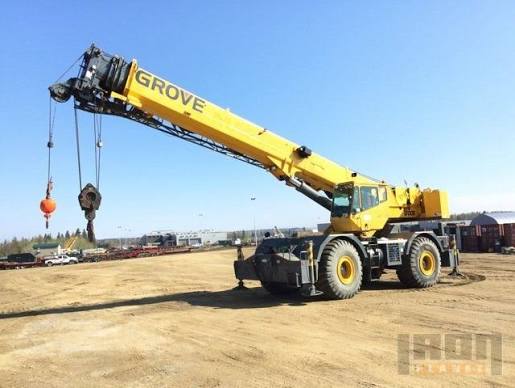

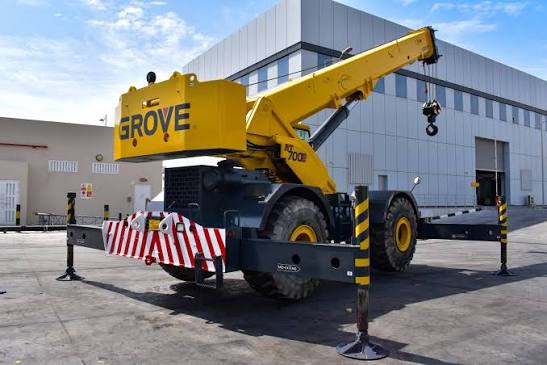

Grove RT700E Rough Terrain Crane
1 / 5
Image 1 of 5
Image: cranetrader.com

Specifications

34 data points

Operating Specifications

Operating Specifications specifications
Operating Weight85,138 lb
Fuel Capacity72.2 gal
Tire Size29.5x25-28PR
Operating Voltage12 V
Hydraulic System Fluid Capacity132.1 gal

Engine

Engine specifications
Engine ModelQSB 6.7L
Displacement409 in³
Power Measured @2,500 rpm
Gross Power240.1 hp
Number of Cylinders6
Aspirationturbocharged
Torque Measured @1,500 rpm
Max Torque728 lb-ft
Engine MakeCummins

Dimensions

Dimensions specifications
Wheelbase13 in
Transport Width132 in
Transport Height143 in
Transport Length531 in
Width w/ Outriggers Extended281 in
Carrier/Base Length317 in

Transmission

Transmission specifications
Max Speed - Forward23.0 mph
Max Speed - Reverse23.0 mph
Number of Forward Gears6
Number of Reverse Gears6
Transmission TypeSpicer powershift

Boom

Boom specifications
Max Lift Capacity100,000 lb
Max Height @ Max Raise Angle - no jib1,320 in
Min Height @ Max Raise Angle432 in
Max Elevating Angle78 °
Number of Sections4
Swing Speed3 rpm
Min Operating Radius120 in
Max Operating Radius1,200 in
Height2,568 in
