Grove

RT740

Rough Terrain Crane

Operating Weight
75,476 lb
Max Speed - Forward
20.9 mph
All rough terrain cranes

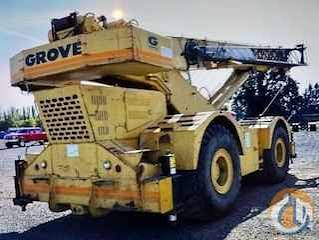

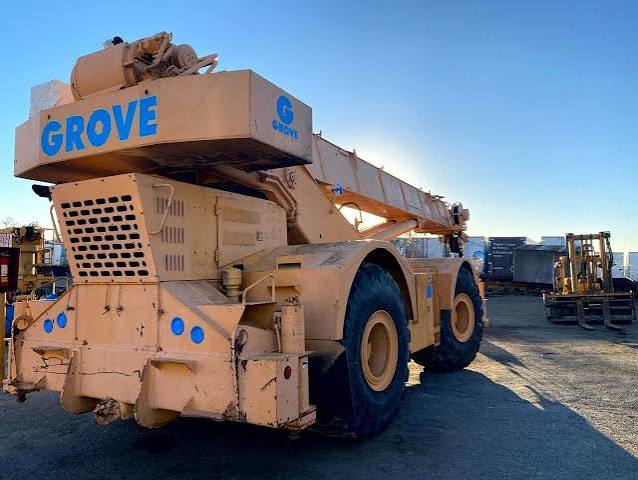

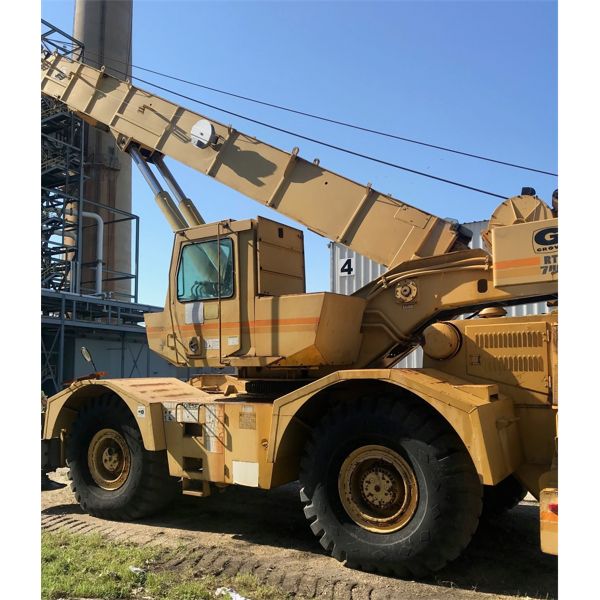

Grove RT740 Rough Terrain Crane
1 / 5
Image 1 of 5
Image: jmwood.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight75,476 lb
Fuel Capacity60.0 gal
Tire Size21.00X25-24PR
Operating Voltage12 V
Hydraulic System Fluid Capacity154.0 gal
Alternator Supplied Amperage65 A

Engine

Engine specifications
Engine Model6V-53N
Displacement318 in³
Power Measured @2,500 rpm
Net Power170.0 hp
Number of Cylinders6
Torque Measured @1,500 rpm
Max Torque392 lb-ft
Engine MakeDetroit Diesel
Stroke5 in
Bore4 in

Dimensions

Dimensions specifications
Ground Clearance17 in
Wheelbase13 in
Transport Width124 in
Transport Height149 in
Transport Length496 in
Width w/ Outriggers Extended300 in
Upper Structure Tail Swing Radius163 in
Carrier/Base Length311 in

Transmission

Transmission specifications
Max Speed - Forward20.9 mph
Number of Forward Gears6
Number of Reverse Gears6
Transmission Typefull powershift

Boom

Boom specifications
Max Height @ Max Raise Angle - no jib1,344 in
Min Height @ Max Raise Angle396 in
Max Elevating Angle76 °
Number of Sections3
Swing Speed3 rpm
