Grove

RT745

Rough Terrain Crane

Operating Weight
83,000 lb
Max Speed - Forward
20.4 mph
Gross Power
191.8 hp
All rough terrain cranes

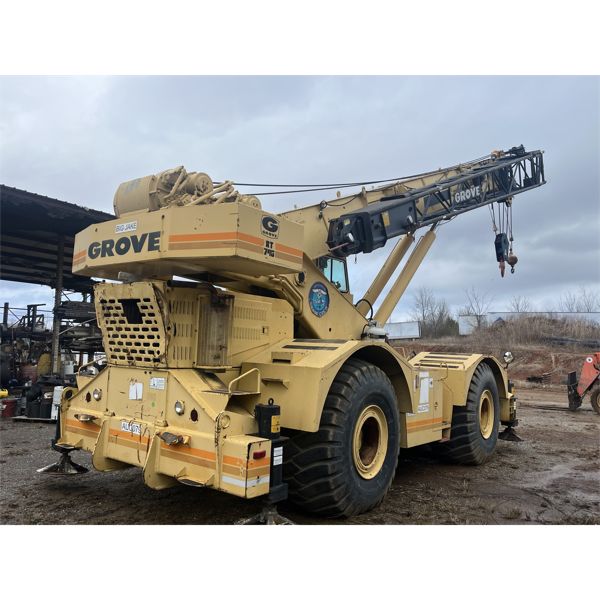

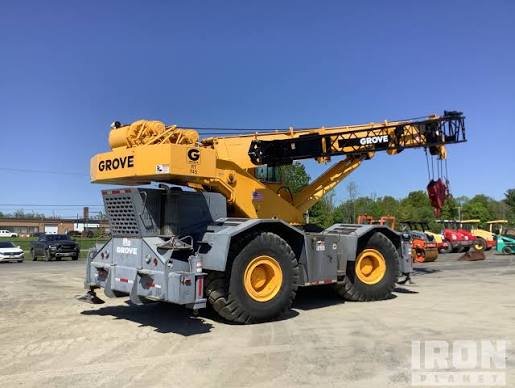

Grove RT745 Rough Terrain Crane
1 / 5
Image 1 of 5
Image: jmwood.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight83,000 lb
Fuel Capacity60.0 gal
Tire Size21.00X25-24PR
Operating Voltage12 V
Hydraulic System Fluid Capacity154.0 gal

Engine

Engine specifications
Engine Model6BTA5.9
Displacement360 in³
Power Measured @2,800 rpm
Gross Power191.8 hp
Number of Cylinders6
Aspirationturbocharged
Torque Measured @1,700 rpm
Max Torque458 lb-ft
Engine MakeCummins

Dimensions

Dimensions specifications
Ground Clearance17 in
Wheelbase13 in
Transport Width132 in
Transport Height149 in
Transport Length507 in
Width w/ Outriggers Extended300 in
Upper Structure Tail Swing Radius163 in
Carrier/Base Length311 in

Transmission

Transmission specifications
Max Speed - Forward20.4 mph
Number of Forward Gears6
Number of Reverse Gears6
Transmission Typeremote mounted powershift

Boom

Boom specifications
Max Height @ Max Raise Angle - no jib1,248 in
Min Height @ Max Raise Angle408 in
Max Elevating Angle76 °
Number of Sections4
Swing Speed3 rpm
