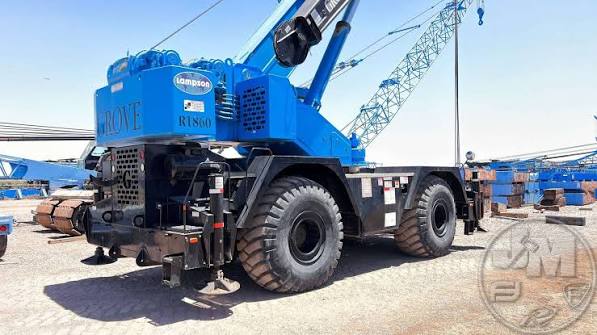

Grove
RT860
- Operating Weight
- 94,770 lb
- Max Lift Capacity
- 120,000 lb
- Max Speed - Forward
- 24.9 mph
- Gross Power
- 249.5 hp
1 / 5
Image 1 of 5
Specifications
34 data points
Operating Specifications
| Operating Weight | 94,770 lb |
|---|---|
| Fuel Capacity | 80.1 gal |
| Tire Size | 29.5x25-28PR |
| Operating Voltage | 24 V |
| Hydraulic System Fluid Capacity | 200.0 gal |
Engine
| Engine Model | 6CTA 8.3 |
|---|---|
| Displacement | 507 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 249.5 hp |
| Number of Cylinders | 6 |
| Aspiration | turbocharged |
| Torque Measured @ | 1,800 rpm |
| Max Torque | 794 lb-ft |
| Engine Make | Cummins |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Wheelbase | 13 in |
| Transport Width | 131 in |
| Transport Height | 152 in |
| Transport Length | 534 in |
| Width w/ Outriggers Extended | 313 in |
| Upper Structure Tail Swing Radius | 169 in |
| Carrier/Base Length | 340 in |
Transmission
| Max Speed - Forward | 24.9 mph |
|---|---|
| Number of Forward Gears | 6 |
| Number of Reverse Gears | 6 |
| Transmission Type | full powershift |
Boom
| Max Lift Capacity | 120,000 lb |
|---|---|
| Max Height @ Max Raise Angle - no jib | 1,380 in |
| Min Height @ Max Raise Angle | 444 in |
| Max Elevating Angle | 78 ° |
| Number of Sections | 4 |
| Swing Speed | 2 rpm |
| Min Operating Radius | 120 in |
| Max Operating Radius | 1,260 in |
