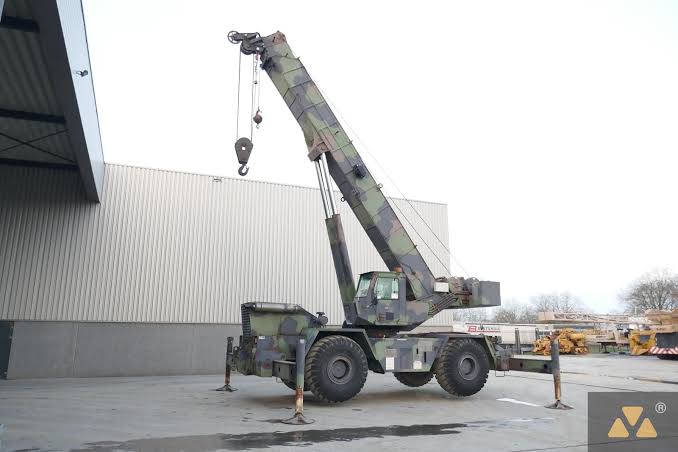

Grove
Terex
A600
Rough Terrain Crane
31 specifications
1 / 5
Image 1 of 5
Specifications
31 data points
Operating Specifications
| Operating Weight | 111,863 lb |
|---|---|
| Fuel Capacity | 100.2 gal |
| Tire Size | 29.5 x 25 - 28 PR |
| Operating Voltage | 24 V |
| Hydraulic System Fluid Capacity | 225.1 gal |
Engine
| Engine Model | 6CTA |
|---|---|
| Displacement | 507 in³ |
| Power Measured @ | 2,500 rpm |
| Gross Power | 249.5 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,800 rpm |
| Max Torque | 650 lb-ft |
| Engine Make | Cummins |
Dimensions
| Ground Clearance | 24 in |
|---|---|
| Wheelbase | 170 in |
| Transport Width | 145 in |
| Transport Height | 154 in |
| Transport Length | 546 in |
| Width w/ Outriggers Extended | 313 in |
| Upper Structure Tail Swing Radius | 170 in |
| Carrier/Base Length | 335,001 in |
Transmission
| Max Speed - Forward | 18.8 mph |
|---|---|
| Number of Forward Gears | 6 |
| Number of Reverse Gears | 6 |
| Transmission Type | full powershift |
Boom
| Max Height @ Max Raise Angle - no jib | 1,367 in |
|---|---|
| Min Height @ Max Raise Angle | 433 in |
| Max Elevating Angle | 80 ° |
| Number of Sections | 4 |
| Swing Speed | 2 rpm |
