Grove
Terex
A600

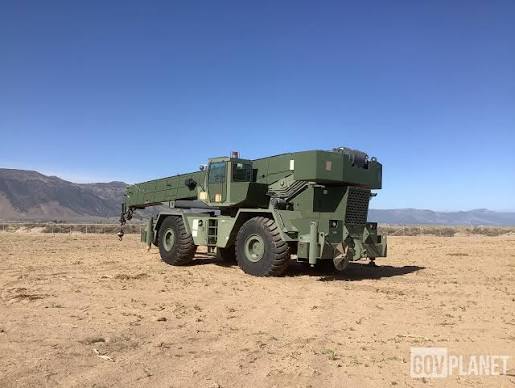

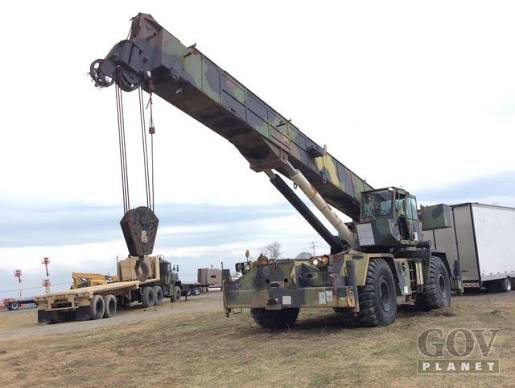

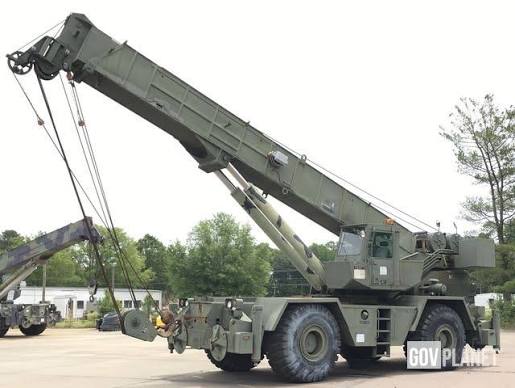

Rough Terrain Crane
31 specifications
1 / 5
Image 1 of 5
Specifications
29 data points
Operating Specifications
| Operating Weight | 94,501 lb |
|---|---|
| Fuel Capacity | 100.0 gal |
| Tire Size | 33.25X29-32PR |
| Operating Voltage | 24 V |
| Hydraulic System Fluid Capacity | 165.0 gal |
| Cooling System Fluid Capacity | 44.0 gal |
Engine
| Engine Model | 6CTA 8.3L |
|---|---|
| Displacement | 505 in³ |
| Power Measured @ | 2,500 rpm |
| Gross Power | 250.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,800 rpm |
| Max Torque | 650 lb-ft |
| Engine Make | Cummins |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Wheelbase | 170 in |
| Transport Width | 144 in |
| Transport Height | 157 in |
| Transport Length | 556 in |
| Width w/ Outriggers Extended | 288 in |
| Upper Structure Tail Swing Radius | 172 in |
Transmission
| Max Speed - Forward | 24.9 mph |
|---|---|
| Number of Forward Gears | 6 |
| Number of Reverse Gears | 6 |
| Transmission Type | full powershift |
Boom
| Max Height @ Max Raise Angle - no jib | 725 in |
|---|---|
| Min Height @ Max Raise Angle | 414 in |
| Max Elevating Angle | 80 ° |
