Grove
Terex
A600
Rough Terrain Crane
31 specifications

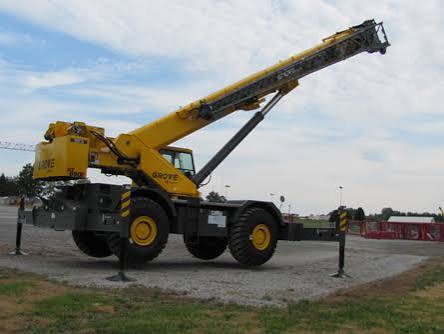

Grove
RT880
- Operating Weight
- 109,874 lb
- Max Lift Capacity
- 160,000 lb
- Max Speed - Forward
- 18.8 mph
- Gross Power
- 249.5 hp
1 / 5
Image 1 of 5
Specifications
33 data points
Operating Specifications
| Operating Weight | 109,874 lb |
|---|---|
| Fuel Capacity | 100.0 gal |
| Tire Size | 29.5x25-28PR |
| Operating Voltage | 12 V |
| Hydraulic System Fluid Capacity | 225.1 gal |
Engine
| Engine Model | 6CTA 8.3L |
|---|---|
| Displacement | 507 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 249.5 hp |
| Number of Cylinders | 6 |
| Aspiration | turbocharged |
| Torque Measured @ | 1,500 rpm |
| Max Torque | 794 lb-ft |
| Engine Make | Cummins |
Dimensions
| Wheelbase | 14 in |
|---|---|
| Transport Width | 145 in |
| Transport Height | 154 in |
| Transport Length | 570 in |
| Width w/ Outriggers Extended | 319 in |
| Upper Structure Tail Swing Radius | 172 in |
| Carrier/Base Length | 336 in |
Transmission
| Max Speed - Forward | 18.8 mph |
|---|---|
| Number of Forward Gears | 6 |
| Number of Reverse Gears | 6 |
| Transmission Type | full powershift |
Boom
| Max Lift Capacity | 160,000 lb |
|---|---|
| Max Height @ Max Raise Angle - no jib | 1,368 in |
| Min Height @ Max Raise Angle | 432 in |
| Max Elevating Angle | 80 ° |
| Number of Sections | 4 |
| Swing Speed | 2 rpm |
| Min Operating Radius | 120 in |
| Max Operating Radius | 1,200 in |
