Grove
Terex
A600
Rough Terrain Crane
31 specifications

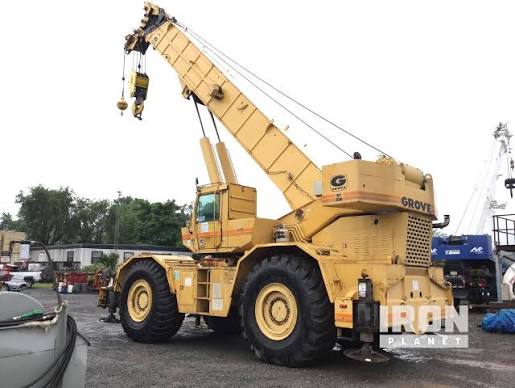

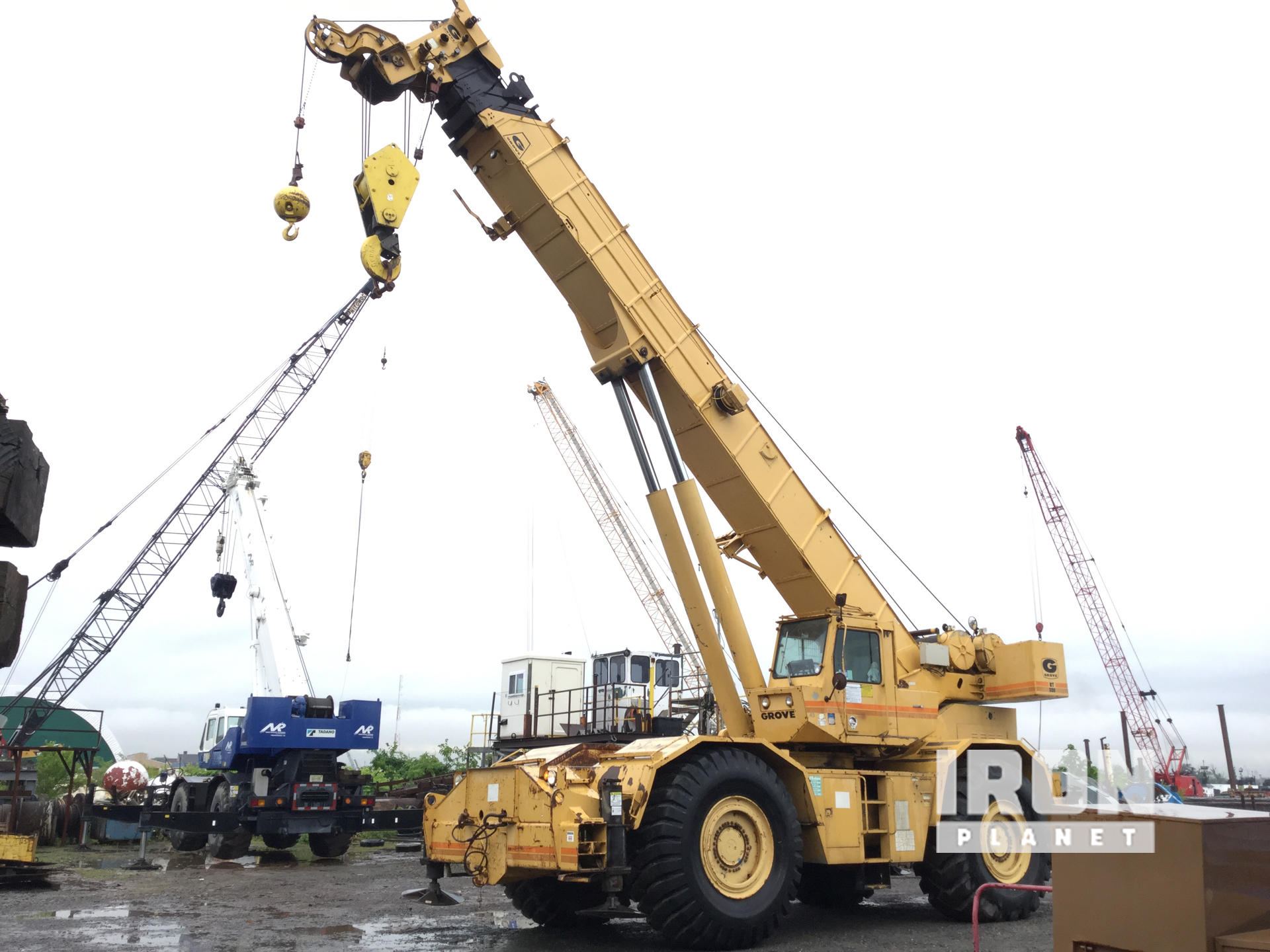

Grove
RT990
- Operating Weight
- 136,400 lb
- Max Lift Capacity
- 180,000 lb
- Max Speed - Forward
- 16.2 mph
- Gross Power
- 280.3 hp
1 / 5
Image 1 of 5
Specifications
31 data points
Operating Specifications
| Operating Weight | 136,400 lb |
|---|---|
| Fuel Capacity | 100.0 gal |
| Tire Size | 33.25x35-32PR |
| Operating Voltage | 24 V |
| Hydraulic System Fluid Capacity | 375.0 gal |
Engine
| Engine Model | 6-7IT |
|---|---|
| Power Measured @ | 2,100 rpm |
| Gross Power | 280.3 hp |
| Aspiration | turbocharged |
| Torque Measured @ | 1,400 rpm |
| Max Torque | 757 lb-ft |
Dimensions
| Ground Clearance | 30 in |
|---|---|
| Wheelbase | 16 in |
| Transport Width | 149 in |
| Transport Height | 165 in |
| Transport Length | 547 in |
| Width w/ Outriggers Extended | 318 in |
| Upper Structure Tail Swing Radius | 172 in |
| Carrier/Base Length | 357 in |
Transmission
| Max Speed - Forward | 16.2 mph |
|---|---|
| Number of Forward Gears | 6 |
| Number of Reverse Gears | 6 |
| Transmission Type | remote mounted powershift |
Boom
| Max Lift Capacity | 180,000 lb |
|---|---|
| Max Height @ Max Raise Angle - no jib | 1,368 in |
| Min Height @ Max Raise Angle | 432 in |
| Max Elevating Angle | 80 ° |
| Number of Sections | 4 |
| Swing Speed | 2 rpm |
| Min Operating Radius | 120 in |
| Max Operating Radius | 1,200 in |
Comparable machines
Other rough terrain cranes in a similar weight class.
