Grove

TM650

Truck Crane

Operating Weight
89,800 lb
Max Lift Capacity
130,000 lb
Max Speed - Forward
45.6 mph
Displacement
568 in³
All truck cranes

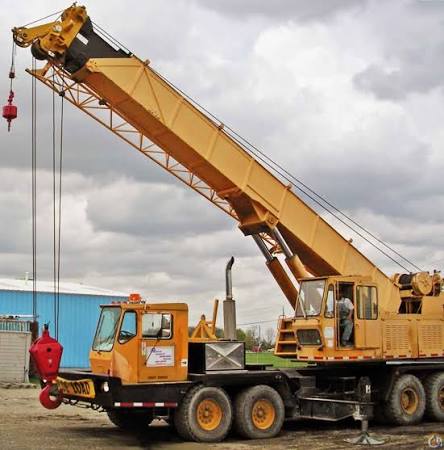

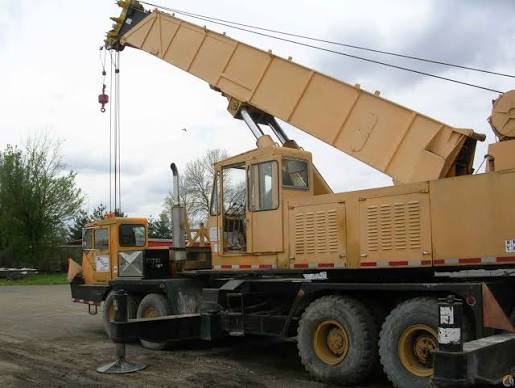

Grove TM650 Truck Crane
1 / 5
Image 1 of 5
Image: cranenetwork.com

Specifications

40 data points

Operating Specifications

Operating Specifications specifications
Operating Weight89,800 lb
Operating Voltage12 V
Tire Size14.00x2018ply
Carrier Fuel Capacity60.0 gal
Upper Structure Hydraulic System Fluid Capacity205.0 gal
Number of Axels4
Alternator Supplied Amperage62 A
Upper Structure Fuel Capacity75.0 gal

Dimensions

Dimensions specifications
Ground Clearance11 in
Transport Width128 in
Transport Height149 in
Transport Length544 in
Width w/ Outriggers Extended252 in
Upper Structure Tail Swing Radius168 in
Carrier Length428 in

Transmission

Transmission specifications
Max Speed - Forward45.6 mph
Number of Forward Gears13
Number of Reverse Gears2
Transmission TypeFuller RTOO 9513 Roadranger

Boom

Boom specifications
Max Lift Capacity130,000 lb
Max Height @ Max Raise Angle - no jib1,428 in
Min Height @ Max Raise Angle420 in
Max Elevating Angle80 °
Number of Sections4
Swing Speed3 rpm
Min Working Radius144 in
Max Working Radius1,380 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power304.0 hp
Displacement568 in³
Power Measured @2,100 rpm
MakeGrove
Max Torque814 lb-ft
Torque Measured @1,400 rpm

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
Net Power178.0 hp
Displacement318 in³
MakeGrove
Power Measured @2,500 rpm
Torque Measured @1,200 rpm
Max Torque410 lb-ft
Number of cylinders6
