Grove

TM9120

Truck Crane

Operating Weight
109,500 lb
Max Lift Capacity
240,000 lb
Max Speed - Forward
50.0 mph
Displacement
854 in³
All truck cranes

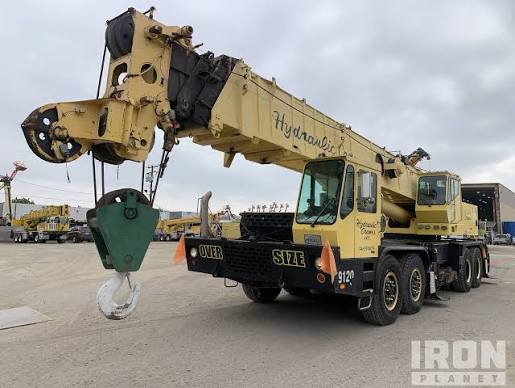

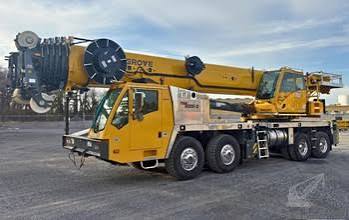

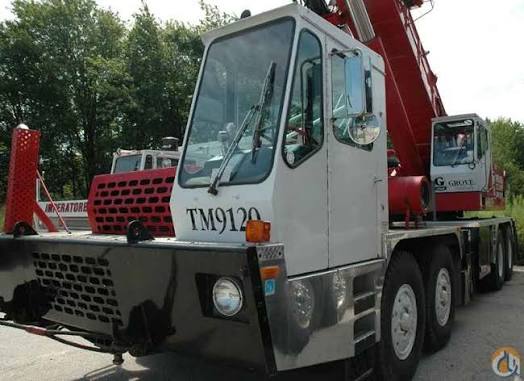

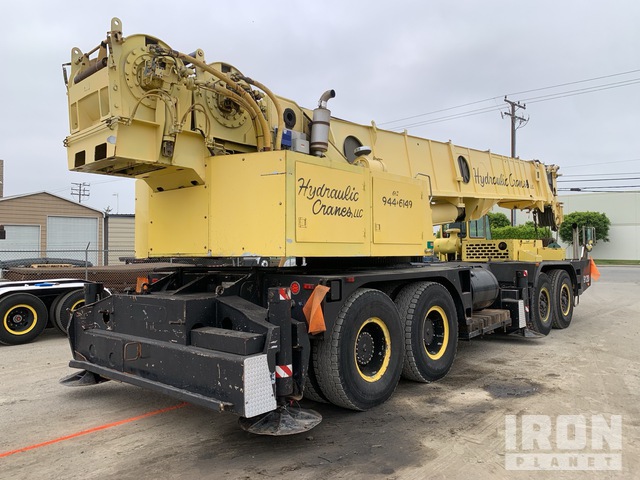

Grove TM9120 Truck Crane
1 / 5
Image 1 of 5
Image: ironplanet.com

Specifications

37 data points

Operating Specifications

Operating Specifications specifications
Operating Weight109,500 lb
Operating Voltage24 V
Tire Size14.00R24
Carrier Fuel Capacity100.0 gal
Upper Structure Hydraulic System Fluid Capacity280.0 gal
Number of Axels4

Dimensions

Dimensions specifications
Wheelbase240 in
Transport Width132 in
Transport Height156 in
Transport Length606 in
Width w/ Outriggers Extended331 in
Upper Structure Tail Swing Radius175 in
Carrier Length490 in

Transmission

Transmission specifications
Max Speed - Forward50.0 mph
Number of Forward Gears10
Number of Reverse Gears3
Transmission TypeRoadranger

Boom

Boom specifications
Max Lift Capacity240,000 lb
Max Height @ Max Raise Angle - no jib1,560 in
Min Height @ Max Raise Angle504 in
Max Elevating Angle80 °
Number of Sections4
Swing Speed2 rpm
Min Working Radius120 in
Max Working Radius1,440 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power460.0 hp
Displacement854 in³
Power Measured @1,600 rpm
MakeGrove
Max Torque1,550 lb-ft
Torque Measured @1,200 rpm
Number of cylinders6

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
Gross Power250.0 hp
MakeGrove
Power Measured @2,200 rpm
Torque Measured @1,500 rpm
Max Torque716 lb-ft
