Grove

TMS300

Truck Crane

Operating Weight
59,876 lb
Max Lift Capacity
66,139 lb
Max Speed - Forward
52.7 mph
Displacement
426 in³
All truck cranes

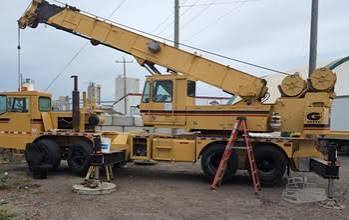

Grove TMS300 Truck Crane
1 / 5
Image 1 of 5
Image: cranetrader.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight59,876 lb
Operating Voltage24 V
Tire Sizefront 12.00x20-16PR rear 11.00x20-14PR
Carrier Fuel Capacity90.0 gal
Upper Structure Hydraulic System Fluid Capacity127.0 gal
Number of Axels4
Alternator Supplied Amperage90 A

Dimensions

Dimensions specifications
Ground Clearance9 in
Transport Width96 in
Transport Height130 in
Transport Length493 in
Width w/ Outriggers Extended216 in
Upper Structure Tail Swing Radius126 in
Carrier Length422 in

Transmission

Transmission specifications
Max Speed - Forward52.7 mph
Number of Forward Gears13
Number of Reverse Gears3
Transmission TypeFuller Roadranger RTO613

Boom

Boom specifications
Max Lift Capacity66,139 lb
Max Height @ Max Raise Angle - no jib1,344 in
Min Height @ Max Raise Angle396 in
Max Elevating Angle80 °
Number of Sections3
Swing Speed3 rpm

CARRIER ENGINE

CARRIER ENGINE specifications
Net Power203.0 hp
Displacement426 in³
Power Measured @2,100 rpm
MakeGrove
Max Torque551 lb-ft
Torque Measured @1,600 rpm

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
MakeGrove
