Grove

TMS375LP

Truck Crane

Operating Weight
74,160 lb
Max Lift Capacity
90,000 lb
Max Speed - Forward
51.2 mph
Displacement
426 in³
All truck cranes

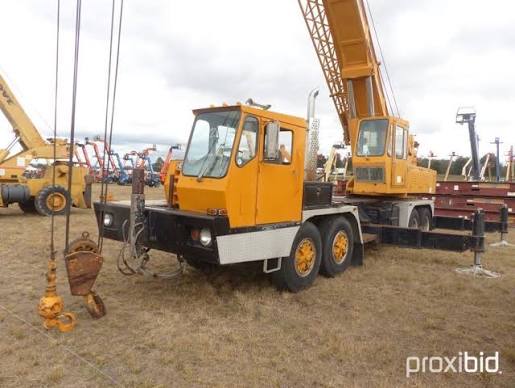

Grove TMS375LP Truck Crane
1 / 5
Image 1 of 5
Image: wpcrane.com

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Operating Weight74,160 lb
Operating Voltage12 V
Tire Sizefront 12.00x20 rear 11.00x20
Carrier Fuel Capacity90.0 gal
Upper Structure Hydraulic System Fluid Capacity140.0 gal
Number of Axels4
Alternator Supplied Amperage62 A
Turning Radius473 in

Dimensions

Dimensions specifications
Ground Clearance15 in
Transport Width96 in
Transport Length524 in
Width w/ Outriggers Extended240 in
Upper Structure Tail Swing Radius144 in
Carrier Length420 in

Transmission

Transmission specifications
Max Speed - Forward51.2 mph
Number of Forward Gears13
Number of Reverse Gears3
Transmission TypeFuller roadranger RTO-613

Boom

Boom specifications
Max Lift Capacity90,000 lb
Max Height @ Max Raise Angle - no jib1,452 in
Min Height @ Max Raise Angle420 in
Max Elevating Angle76 °
Number of Sections4
Swing Speed3 rpm
Min Working Radius120 in
Max Working Radius1,380 in

CARRIER ENGINE

CARRIER ENGINE specifications
Net Power213.0 hp
Displacement426 in³
Power Measured @2,100 rpm
MakeGrove
Max Torque582 lb-ft
Torque Measured @1,400 rpm
