Grove

TMS475

Truck Crane

Operating Weight
76,884 lb
Max Lift Capacity
74,000 lb
Max Speed - Forward
51.4 mph
Displacement
426 in³
All truck cranes

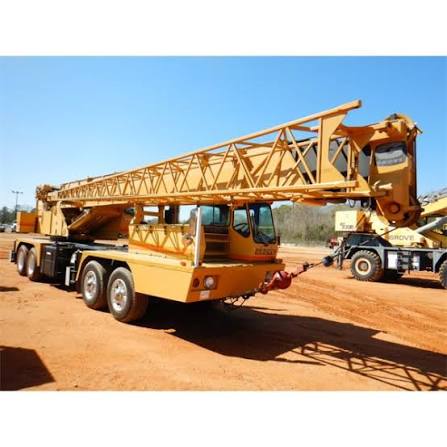

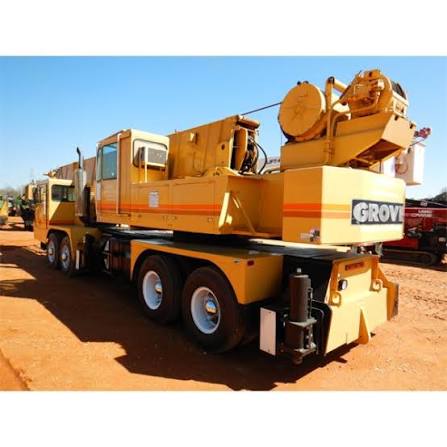

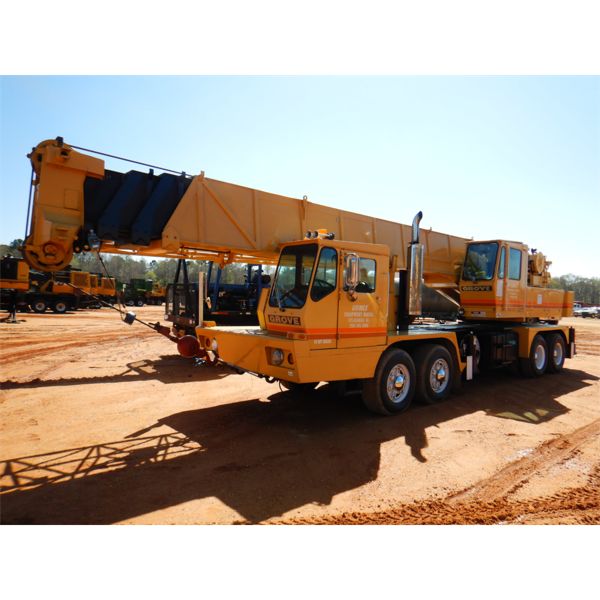

Grove TMS475 Truck Crane
1 / 5
Image 1 of 5
Image: jmwood.com

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Operating Weight76,884 lb
Operating Voltage24 V
Tire Size11.00x20 14PR
Carrier Fuel Capacity96.0 gal
Number of Axels5
Alternator Supplied Amperage90 A
Carrier Cooling System Fluid Capacity13.0 gal

Dimensions

Dimensions specifications
Ground Clearance9 in
Transport Width96 in
Transport Height133 in
Transport Length538 in
Width w/ Outriggers Extended271 in
Upper Structure Tail Swing Radius145 in
Carrier Length413 in

Transmission

Transmission specifications
Max Speed - Forward51.4 mph
Number of Forward Gears13
Number of Reverse Gears3
Transmission TypeFuller roadranger RTO-6613

Boom

Boom specifications
Max Lift Capacity74,000 lb
Max Height @ Max Raise Angle - no jib1,008 in
Min Height @ Max Raise Angle480 in
Max Elevating Angle76 °
Number of Sections4
Min Working Radius120 in
Max Working Radius1,320 in

CARRIER ENGINE

CARRIER ENGINE specifications
Net Power203.0 hp
Gross Power230.0 hp
Displacement426 in³
Power Measured @2,100 rpm
MakeGrove
Max Torque551 lb-ft
Torque Measured @1,600 rpm
