Grove

TMS500E

Truck Crane

Operating Weight
62,000 lb
Max Lift Capacity
80,000 lb
Max Speed - Forward
65.3 mph
Displacement
507 in³
All truck cranes

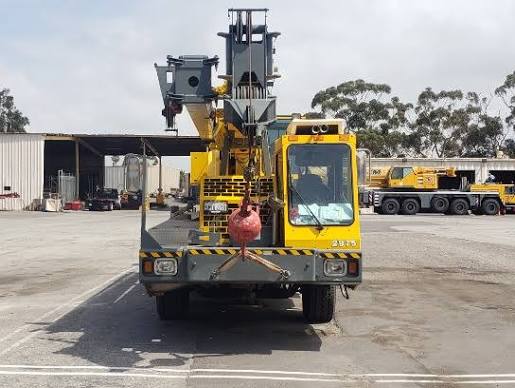

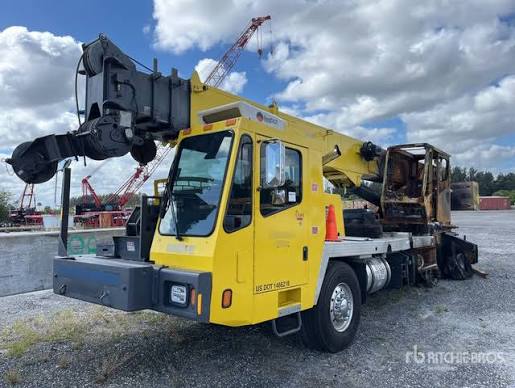

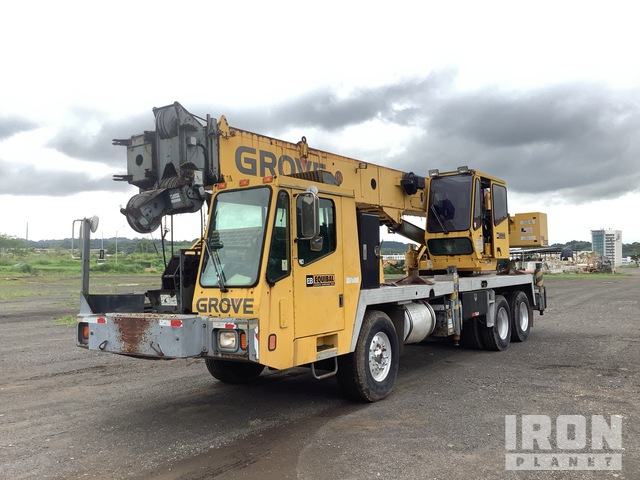

Grove TMS500E Truck Crane
1 / 5
Image 1 of 5
Image: eu.ironplanet.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight62,000 lb
Operating Voltage24 V
Tire SizeFront- 425/65R 22.5 / Rear - 11R22.5
Carrier Fuel Capacity60.0 gal
Upper Structure Hydraulic System Fluid Capacity95.9 gal
Number of Axels3

Hydraulic System

Hydraulic System specifications
Maximum operating pressure3,500 psi

Dimensions

Dimensions specifications
Transport Width101 in
Transport Height135 in
Transport Length444 in
Width w/ Outriggers Extended240 in
Upper Structure Tail Swing Radius144 in
Carrier Length417 in

Transmission

Transmission specifications
Max Speed - Forward65.3 mph
Number of Forward Gears6
Number of Reverse Gears1
Transmission TypeAllison automatic

Boom

Boom specifications
Max Lift Capacity80,000 lb
Max Height @ Max Raise Angle - no jib1,140 in
Min Height @ Max Raise Angle348 in
Max Elevating Angle76 °
Number of Sections4
Swing Speed3 rpm
Min Working Radius108 in
Max Working Radius1,020 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power330.0 hp
Displacement507 in³
Power Measured @2,200 rpm
MakeGrove
Max Torque950 lb-ft
Torque Measured @1,600 rpm
