Grove

TMS640

Truck Crane

Operating Weight
72,225 lb
Max Lift Capacity
80,000 lb
Max Speed - Forward
50.0 mph
Displacement
507 in³
All truck cranes

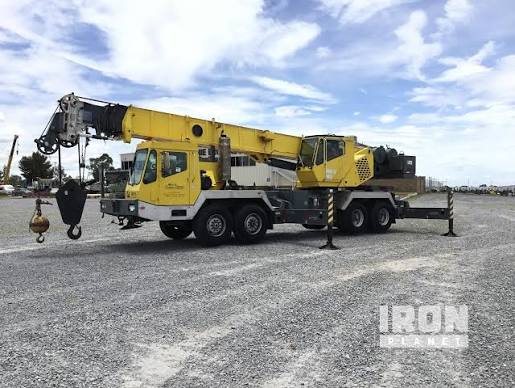

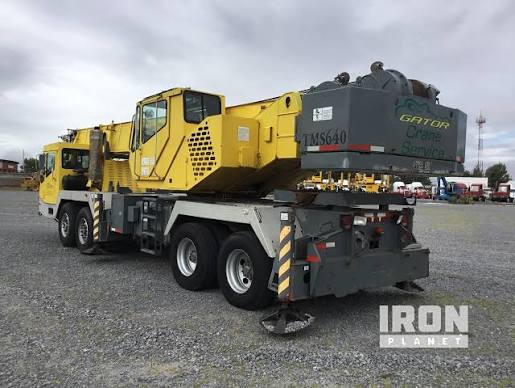

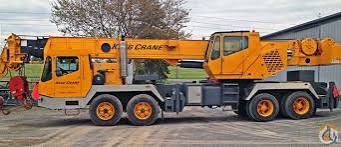

Grove TMS640 Truck Crane
1 / 5
Image 1 of 5
Image: cranenetwork.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight72,225 lb
Operating Voltage12 V
Tire SizeFront - 425/65R22.5 / Rear - 11.00 x 20-14PR
Carrier Fuel Capacity100.0 gal
Upper Structure Hydraulic System Fluid Capacity195.0 gal
Number of Axels4

Dimensions

Dimensions specifications
Ground Clearance11 in
Transport Width98 in
Transport Height130 in
Transport Length494 in
Width w/ Outriggers Extended240 in
Upper Structure Tail Swing Radius161 in
Carrier Length430 in

Transmission

Transmission specifications
Max Speed - Forward50.0 mph
Number of Forward Gears13
Number of Reverse Gears3
Transmission TypeRoadranger

Boom

Boom specifications
Max Lift Capacity80,000 lb
Max Height @ Max Raise Angle - no jib1,344 in
Min Height @ Max Raise Angle492 in
Max Elevating Angle78 °
Number of Sections4
Swing Speed3 rpm
Min Working Radius120 in
Max Working Radius1,140 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power250.0 hp
Displacement507 in³
Power Measured @2,400 rpm
MakeGrove
Max Torque660 lb-ft
Torque Measured @1,300 rpm
