Grove

TM200C

Truck Crane

Operating Weight
46,000 lb
Max Lift Capacity
40,000 lb
Displacement
378 in³
All truck cranes

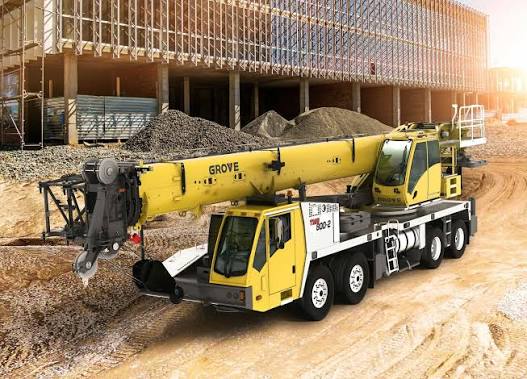

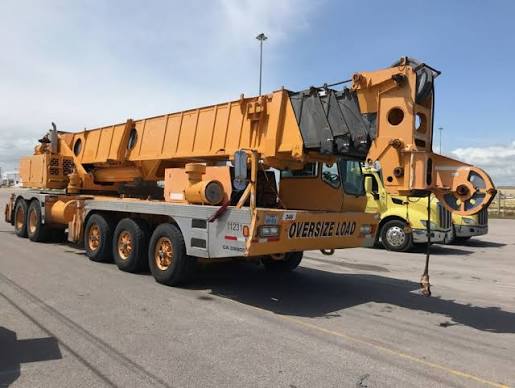

Grove TM200C Truck Crane
1 / 5
Image 1 of 5
Image: kirby-smith.com

Specifications

34 data points

Operating Specifications

Operating Specifications specifications
Operating Weight46,000 lb
Operating Voltage12 V
Tire Sizefront 10.00x20 rear 9.00x20
Upper Structure Hydraulic System Fluid Capacity87.0 gal
Number of Axels3
Alternator Supplied Amperage75 A
Upper Structure Fuel Capacity40.0 gal

Dimensions

Dimensions specifications
Transport Width96 in
Transport Height139 in
Width w/ Outriggers Extended216 in
Upper Structure Tail Swing Radius96 in
Carrier Length277 in

Boom

Boom specifications
Max Lift Capacity40,000 lb
Max Height @ Max Raise Angle - no jib780 in
Min Height @ Max Raise Angle360 in
Max Elevating Angle75 °
Number of Sections3
Swing Speed3 rpm
Min Working Radius120 in
Max Working Radius660 in

CARRIER ENGINE

CARRIER ENGINE specifications
Net Power106.0 hp
Gross Power120.0 hp
Displacement378 in³
Power Measured @2,800 rpm
MakeGrove
Max Torque223 lb-ft
Torque Measured @1,850 rpm

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
Net Power80.0 hp
Gross Power92.0 hp
Displacement159 in³
MakeGrove
Power Measured @2,800 rpm
Torque Measured @1,800 rpm
Max Torque198 lb-ft
