Grove

TMS750B

Truck Crane

Operating Weight
77,531 lb
Displacement
507 in³
All truck cranes

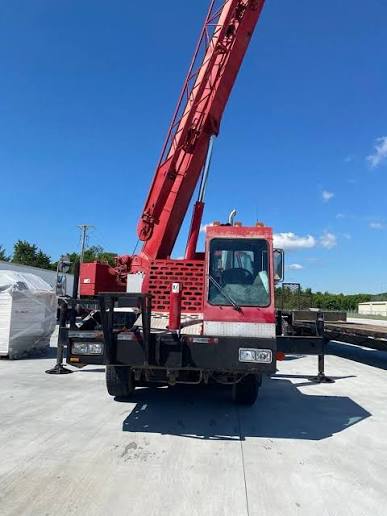

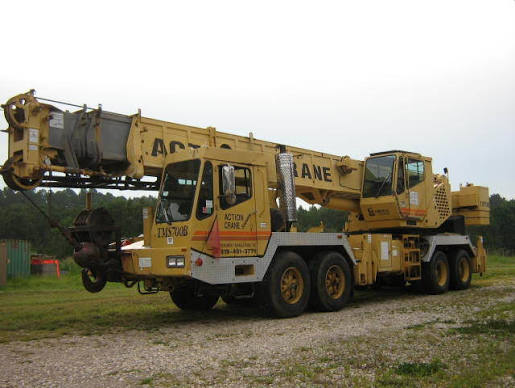

Grove TMS750B Truck Crane
1 / 5
Image 1 of 5
Image: indiamart.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight77,531 lb
Operating Voltage12 V
Carrier Fuel Capacity99.4 gal
Upper Structure Hydraulic System Fluid Capacity218.0 gal
Number of Axels4

Dimensions

Dimensions specifications
Ground Clearance12 in
Wheelbase224 in
Transport Width93 in
Transport Height130 in
Transport Length494 in
Width w/ Outriggers Extended240 in
Upper Structure Tail Swing Radius161 in
Gradeability40.0 %
Carrier Length430 in

Transmission

Transmission specifications
Number of Forward Gears13
Number of Reverse Gears3
Transmission TypeRoadranger

Boom

Boom specifications
Max Height @ Max Raise Angle - no jib1,416 in
Min Height @ Max Raise Angle420 in
Max Elevating Angle78 °
Number of Sections4
Swing Speed3 rpm
Min Working Radius386 in
Max Working Radius674 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power249.5 hp
Displacement507 in³
Power Measured @2,400 rpm
MakeGrove
Max Torque660 lb-ft
Torque Measured @1,300 rpm
Number of cylinders6
