Grove

TMS750E

Truck Crane

Operating Weight
92,594 lb
Max Speed - Forward
40.0 mph
Displacement
976 in³
All truck cranes

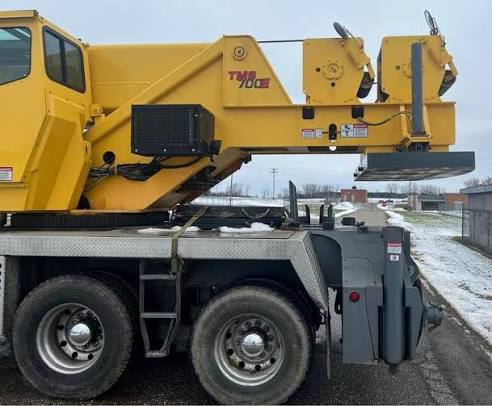

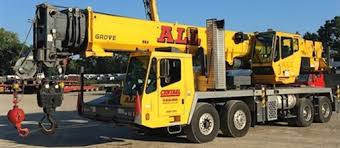

Grove TMS750E Truck Crane
1 / 5
Image 1 of 5
Image: manitowoc.com

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Operating Weight92,594 lb
Operating Voltage24 V
Tire Size14.00x20
Carrier Fuel Capacity110.5 gal
Upper Structure Hydraulic System Fluid Capacity167.0 gal
Number of Axels4
Upper Structure Fuel Capacity60.8 gal

Dimensions

Dimensions specifications
Ground Clearance13 in
Transport Width100 in
Transport Height138 in
Transport Length530 in
Width w/ Outriggers Extended295 in
Upper Structure Tail Swing Radius146 in
Carrier Length451 in

Transmission

Transmission specifications
Max Speed - Forward40.0 mph
Number of Forward Gears13
Number of Reverse Gears3

Boom

Boom specifications
Max Height @ Max Raise Angle - no jib1,572 in
Max Elevating Angle80 °
Number of Sections4

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power289.7 hp
Displacement976 in³
Power Measured @2,500 rpm
MakeGrove
Max Torque701 lb-ft
Torque Measured @1,500 rpm

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
Gross Power159.6 hp
Displacement374 in³
MakeGrove
Power Measured @2,650 rpm
Torque Measured @1,650 rpm
Max Torque361 lb-ft
