Grove

TMS865

Truck Crane

Operating Weight
98,464 lb
Max Lift Capacity
130,000 lb
Max Speed - Forward
48.1 mph
Displacement
855 in³
All truck cranes

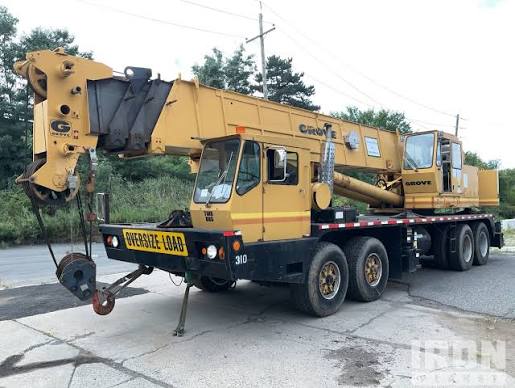

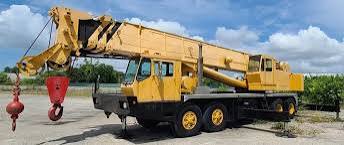

Grove TMS865 Truck Crane
1 / 5
Image 1 of 5
Image: jmwood.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight98,464 lb
Operating Voltage24 V
Tire Sizefront 18.00x22.5-18PR rear 12.00x24-16PR
Carrier Fuel Capacity100.0 gal
Upper Structure Hydraulic System Fluid Capacity225.0 gal
Number of Axels4

Dimensions

Dimensions specifications
Ground Clearance12 in
Transport Width133 in
Transport Height142 in
Transport Length540 in
Width w/ Outriggers Extended307 in
Upper Structure Tail Swing Radius168 in
Carrier Length463 in

Transmission

Transmission specifications
Max Speed - Forward48.1 mph
Number of Forward Gears9
Number of Reverse Gears2
Transmission TypeFuller Roadranger RT9509A

Boom

Boom specifications
Max Lift Capacity130,000 lb
Max Height @ Max Raise Angle - no jib1,464 in
Min Height @ Max Raise Angle480 in
Max Elevating Angle80 °
Number of Sections4
Swing Speed2 rpm
Min Working Radius120 in
Max Working Radius1,320 in

CARRIER ENGINE

CARRIER ENGINE specifications
Net Power268.0 hp
Displacement855 in³
Power Measured @2,100 rpm
MakeGrove
Max Torque885 lb-ft
Torque Measured @1,300 rpm
Number of cylinders6

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
MakeGrove
