Grove

TMS875

Truck Crane

Operating Weight
100,978 lb
Max Lift Capacity
150,000 lb
Max Speed - Forward
47.8 mph
Displacement
427 in³
All truck cranes

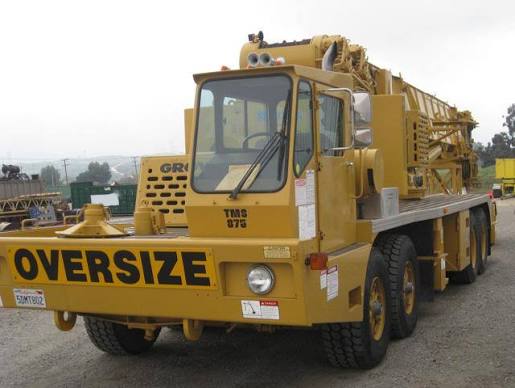

Grove TMS875 Truck Crane
1 / 5
Image 1 of 5
Image: wpcrane.com

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Operating Weight100,978 lb
Operating Voltage24 V
Tire SizeFront - 18.00 x 22.5 - 18PR / Rear - 12.00 x 24 - 16PR
Carrier Fuel Capacity100.2 gal
Upper Structure Hydraulic System Fluid Capacity178.1 gal
Number of Axels4

Dimensions

Dimensions specifications
Ground Clearance9 in
Transport Width132 in
Transport Height157 in
Transport Length544 in
Width w/ Outriggers Extended309 in
Upper Structure Tail Swing Radius170 in
Carrier Length463 in

Transmission

Transmission specifications
Max Speed - Forward47.8 mph
Number of Forward Gears9
Number of Reverse Gears2
Transmission TypeRoadranger Gearbox

Boom

Boom specifications
Max Lift Capacity150,000 lb
Max Height @ Max Raise Angle - no jib1,464 in
Min Height @ Max Raise Angle480 in
Max Elevating Angle80 °
Number of Sections4
Swing Speed2 rpm
Min Working Radius120 in
Max Working Radius1,200 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power280.0 hp
Displacement427 in³
Power Measured @2,100 rpm
MakeGrove
Max Torque785 lb-ft
Torque Measured @1,000 rpm
Number of cylinders6
