Grove

YB4410

Carrydeck Crane

Gross Power
80.5 hp
Operating Weight
17,000 lb
Max Lift Capacity
20,000 lb
Max Speed - Forward
15.0 mph
All carrydeck cranes

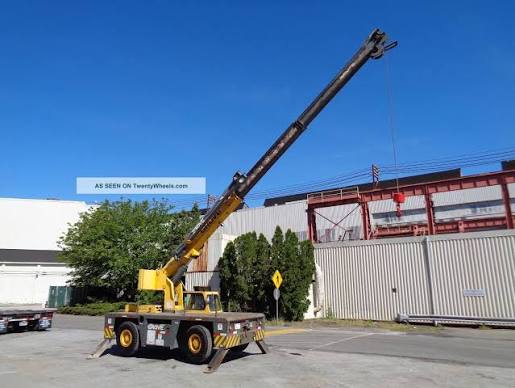

Grove YB4410 Carrydeck Crane
1 / 5
Image 1 of 5
Image: wppecrane.com

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Operating Weight17,000 lb
Operating Voltage12 V
Tire Size10.00 x 15-16PR
Carrier Fuel Capacity30.2 gal
Number of Axels2
Upper Structure Hydraulic System Fluid Capacity30.2 gal

Dimensions

Dimensions specifications
Ground Clearance8 in
Transport Width85 in
Transport Height94 in
Transport Length190 in
Width w/ Outriggers Extended131 in
Upper Structure Tail Swing Radius43 in
Carrier Length173 in

Transmission

Transmission specifications
Max Speed - Forward15.0 mph
Transmission TypeAutomatic
Number of Forward Gears3
Number of Reverse Gears1

Boom

Boom specifications
Max Lift Capacity20,000 lb
Max Elevating Angle70 °
Max Height @ Max Raise Angle - no jib288 in
Min Height @ Max Raise Angle131 in
Number of Sections3
Swing Speed2 rpm
Max Working Radius264 in
Min Working Radius60 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power80.5 hp
MakeGrove
Power Measured @2,500 rpm
Max Torque54 lb-ft
Torque Measured @1,200 rpm
