Grove

YB5518

Carrydeck Crane

Gross Power
101.0 hp
Operating Weight
30,000 lb
Max Lift Capacity
36,000 lb
Max Speed - Forward
21.1 mph
All carrydeck cranes

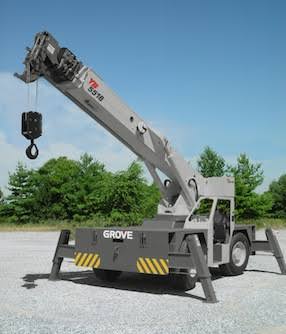

Grove YB5518 Carrydeck Crane
1 / 5
Image 1 of 5
Image: maximcrane.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight30,000 lb
Operating Voltage12 V
Tire Size385/65R22.5
Carrier Fuel Capacity40.0 gal
Number of Axels2
Alternator Supplied Amperage63 A
Upper Structure Hydraulic System Fluid Capacity30.1 gal

Dimensions

Dimensions specifications
Ground Clearance15 in
Transport Width95 in
Transport Height96 in
Transport Length272 in
Width w/ Outriggers Extended167 in
Upper Structure Tail Swing Radius73 in
Carrier Length170 in

Transmission

Transmission specifications
Max Speed - Forward21.1 mph
Transmission TypeClark powershift
Number of Forward Gears4
Number of Reverse Gears4

Boom

Boom specifications
Max Lift Capacity36,000 lb
Max Elevating Angle80 °
Max Height @ Max Raise Angle - no jib654 in
Min Height @ Max Raise Angle221 in
Number of Sections4
Swing Speed3 rpm
Max Working Radius612 in
Min Working Radius72 in
Height674 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power101.0 hp
Displacement263 in³
MakeGrove
Power Measured @2,500 rpm
