Grove
Shuttlelift
5540F
Carrydeck Crane
31 specifications
Grove
YB7722
- Gross Power
- 130.1 hp
- Operating Weight
- 41,271 lb
- Max Lift Capacity
- 44,000 lb
- Max Speed - Forward
- 19.5 mph
1 / 5

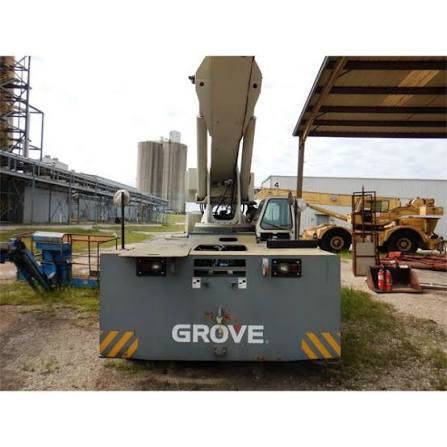

Image 1 of 5
Specifications
32 data points
Operating Specifications
| Operating Weight | 41,271 lb |
|---|---|
| Operating Voltage | 12 V |
| Tire Size | 17.5x25 Bias |
| Carrier Fuel Capacity | 50.0 gal |
| Number of Axels | 2 |
| Alternator Supplied Amperage | 63 A |
| Upper Structure Hydraulic System Fluid Capacity | 60.0 gal |
Dimensions
| Ground Clearance | 17 in |
|---|---|
| Transport Width | 97 in |
| Transport Height | 119 in |
| Transport Length | 298 in |
| Width w/ Outriggers Extended | 183 in |
| Upper Structure Tail Swing Radius | 95 in |
| Carrier Length | 198 in |
Transmission
| Max Speed - Forward | 19.5 mph |
|---|---|
| Max Speed - Reverse | 19.5 mph |
| Transmission Type | Clark powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Boom
| Max Lift Capacity | 44,000 lb |
|---|---|
| Max Elevating Angle | 80 ° |
| Max Height @ Max Raise Angle - no jib | 516 in |
| Min Height @ Max Raise Angle | 233 in |
| Number of Sections | 3 |
| Swing Speed | 3 rpm |
| Max Working Radius | 474 in |
| Min Working Radius | 102 in |
| Height | 631 in |
CARRIER ENGINE
| Gross Power | 130.1 hp |
|---|---|
| Displacement | 360 in³ |
| Make | Grove |
| Power Measured @ | 2,500 rpm |
