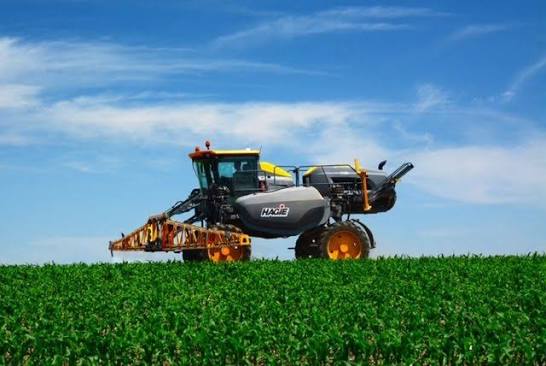

Hagie
Top Air
TA 1600 120ft
Sprayer
7 specifications
1 / 5
Image 1 of 5
Specifications
23 data points
Operating Specifications
| Solution Tank Capacity | 999.9 gal |
|---|---|
| Rinse Tank Capacity | 55.0 gal |
| Fuel Capacity | 100.0 gal |
| Dry Weight - min | 13,600 lb |
| Foam Marker Tank Capacity | 36.0 gal |
Engine
| Engine Model | QSB5.9 |
|---|---|
| Displacement | 360 in³ |
| Gross Power | 205.0 hp |
| Aspiration | Turbocharged |
Dimensions
| Ground Clearance | 73 in |
|---|---|
| Wheelbase | 139 in |
| Overall Length | 25 in |
| Transport Width | 144 in |
| Transport Height | 137 in |
| Tire Size | 380/85R34 Goodyear |
Transmission
| Max Speed | 28.0 mph |
|---|---|
| Transmission Type | Tandem pressure compensated pumps with shift on the go |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Boom
| Max Boom Width | 1,080 in |
|---|---|
| Min Boom Width | 720 in |
| Max Adjustable Height | 101 in |
| Min Adjustable Height | 23 in |
