JCB
JS240L
Excavator
13 specifications
1 / 5

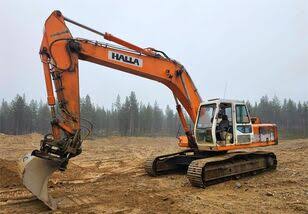

Image 1 of 5
Specifications
40 data points
Operating Specifications
| Operating Weight | 62,170 lb |
|---|---|
| Fuel Capacity | 140.1 gal |
| Hydraulic Pump Flow Capacity | 137.4 gal/min |
| Hydraulic System Fluid Capacity | 100.4 gal |
| Hydraulic System Relief Valve Pressure | 4,970 psi |
| Engine Oil Capacity | 6.0 gal |
| Cooling System Fluid Capacity | 7.4 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 3.0 gal |
| Alternator Supplied Amperage | 50 A |
Engine
| Engine Model | 6CT8.3-C |
|---|---|
| Displacement | 505 in³ |
| Net Power | 177.1 hp |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,500 rpm |
| Max Torque | 587 lb-ft |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Height - Top of Cab | 121 in |
| Length of Track on Ground | 159 in |
| Tail Swing Radius | 131 in |
| Width to Outside of Tracks | 126 in |
| Removal Counterweight Clearance | 47 in |
| Digging Depth | 294 in |
| Digging Reach | 294 in |
Undercarriage
| Ground Pressure | 8 psi |
|---|---|
| Track Gauge | 103 in |
| Number of Track Rollers per Side | 9 |
| Max Travel Speed | 3.0 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 51 |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 55,430 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 296 in |
|---|---|
| Max Reach Along Ground | 419 in |
| Max Loading Height | 284 in |
| Max Cutting Height | 404 in |
| Shipping Length of Unit | 421 in |
| Shipping Height of Unit | 133 in |
Bucket
| Reference Bucket Capacity | 1.60 yd³ |
|---|
Swing Mechanism
| Swing Speed | 12 rpm |
|---|
