Hamm

3205P

Padfoot Compactor

Operating Weight
12,632 lb
Drum Width
54 in
Gross Power
64.4 hp
All padfoot compactors

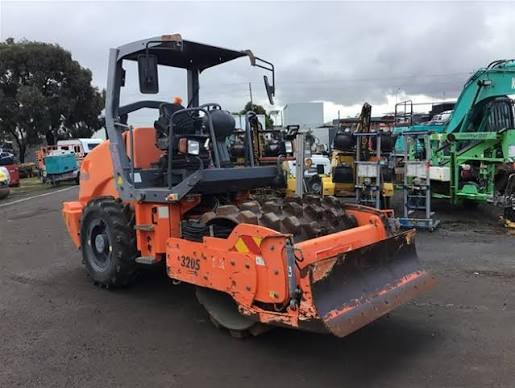

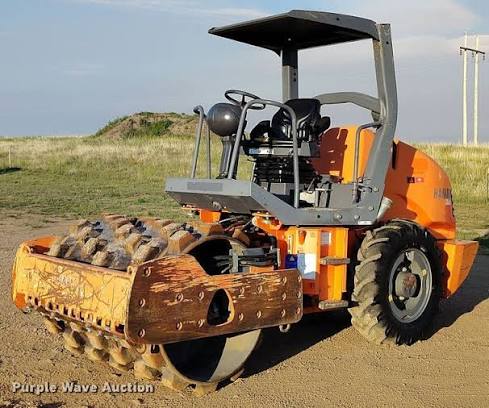

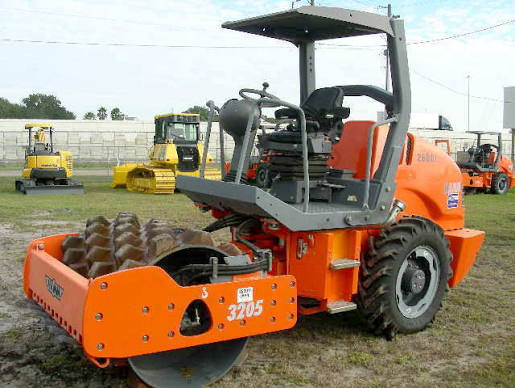

Hamm 3205P Padfoot Compactor
1 / 5
Image 1 of 5
Image: olsencommercial.co.nz

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight12,632 lb
Fuel Capacity46.3 gal
Operating Width54 in

Engine

Engine specifications
Engine ModelTD2011
Displacement177 in³
Power Measured @2,500 rpm
Gross Power64.4 hp
Number of Cylinders4
MakeDeutz

Dimensions

Dimensions specifications
Height - Top of Cab110 in
Width Over Tires59 in
Turning Radius - Inside117 in
Overall Length w/o Blade172 in

Drum

Drum specifications
Drum Width54 in
Vibration Frequency 142 vpm
Nominal Amplitude - High0 in
Pad Height3 in
Number of Pads84
Nominal Amplitude - Low0 in
Vibration Frequency1,800 – 2,520 vpm
