Hamm

3411P

Padfoot Compactor

Operating Weight
29,388 lb
Max Speed
6.9 mph
Drum Width
84 in
Gross Power
134.2 hp
All padfoot compactors

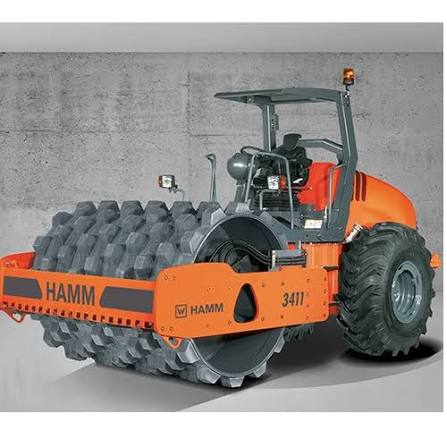

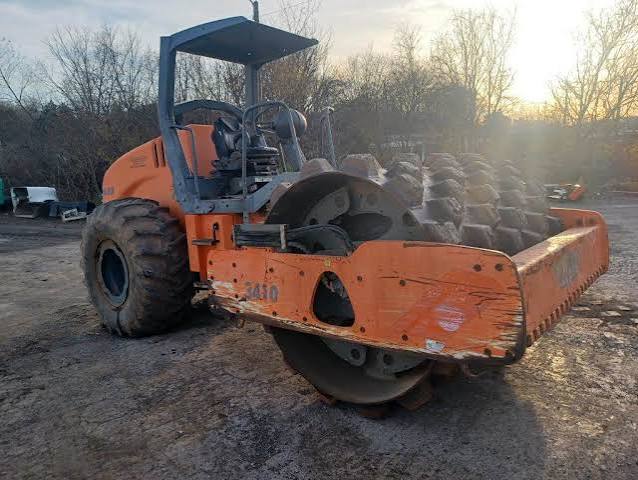

Hamm 3411P Padfoot Compactor
1 / 5
Image 1 of 5
Image: global-ce.com

Specifications

28 data points

Operating Specifications

Operating Specifications specifications
Operating Weight29,388 lb
Operating weight ROPS25,530 lb
Max Speed6.9 mph
Fuel Capacity76.7 gal
Oscillating angle10 °
Smooth drum Operating weight with Cab26,015 lb

Engine

Engine specifications
Engine ModelTCD 2012 L04
Power Measured @2,300 rpm
Gross Power134.2 hp
Net Power134.2 hp
Number of Cylinders4
Engine MakeDEUTZ

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab120 in
Wheelbase118 in
Width Over Tires89 in
Turning Radius - Inside158 in
Overall Length w/o Blade224 in

Tires & Wheels

Tires & Wheels specifications
TiresTR 23.1-26 12 PR

Drum

Drum specifications
Drum Width84 in
Vibration Frequency 140 vpm
Drum Diameter66 in
Nominal Amplitude - High0 in
Pad Height4 in
Number of Pads140
Nominal Amplitude - Low0 in
Pad Surface Area24 in³
Drum thickness1 in
