Hamm

3516 HT P

Padfoot Compactor

Operating Weight
38,316 lb
Max Speed
8.7 mph
Drum Width
84 in
Gross Power
207.9 hp
All padfoot compactors

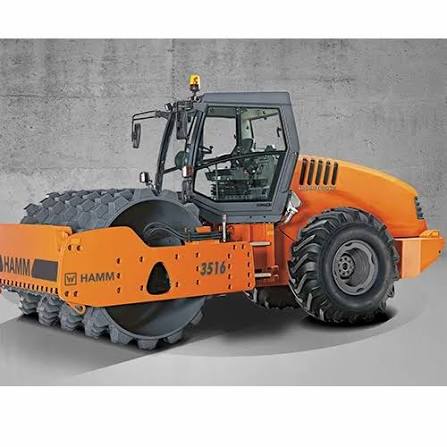

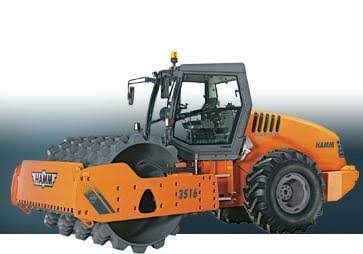

Hamm 3516 HT P Padfoot Compactor
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight38,316 lb
Operating weight ROPS34,469 lb
Max Speed8.7 mph
Fuel Capacity76.7 gal
Oscillating angle10 °
Smooth drum Operating weight with Cab34,954 lb

Engine

Engine specifications
Engine ModelTCD 2012 L06
Power Measured @2,300 rpm
Gross Power207.9 hp
Net Power207.9 hp
Number of Cylinders6
Engine MakeDEUTZ
Emissions levelEU Stage IIIA / EPA Tier 3

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab119 in
Wheelbase122 in
Overall Length240 in
Overall Width90 in
Turning Radius - Inside173 in

Tires & Wheels

Tires & Wheels specifications
TiresTR 23.1-26 12 PR

Drum

Drum specifications
Drum Width84 in
Vibration Frequency 130 vpm
Centrifugal Force - High57,551 lb
Drum Diameter66 in
Nominal Amplitude - High0 in
Pad Height4 in
Number of Pads140
Centrifugal Force - Low48,334 lb
Nominal Amplitude - Low0 in
Vibratory Frequency 240 vpm
Drum thickness1 in
