Hamm

3520P

Padfoot Compactor

Operating Weight
47,907 lb
Max Speed
6.9 mph
Gross Power
207.9 hp
All padfoot compactors

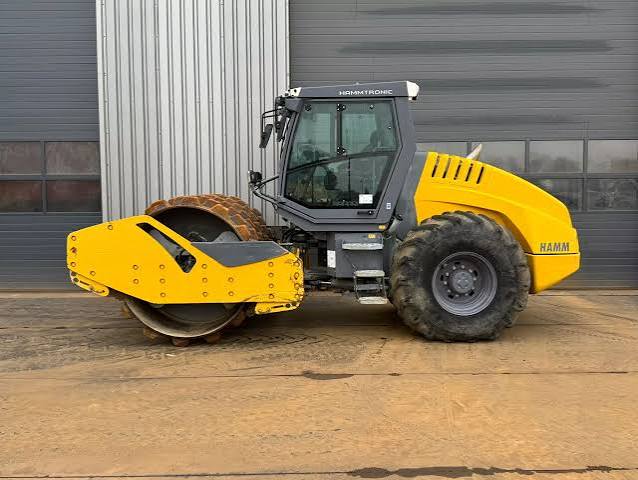

Hamm 3520P Padfoot Compactor
1 / 5
Image 1 of 5
Image: indiamart.com

Specifications

34 data points

Operating Specifications

Operating Specifications specifications
Operating Weight47,907 lb
Operating weight ROPS43,607 lb
Max Speed6.9 mph
Fuel Capacity76.7 gal
Operating Width87 in
Oscillating angle10 °
Smooth drum Operating weight with Cab44,093 lb

Engine

Engine specifications
Engine ModelTCD 2012 L06
Gross Power207.9 hp
Net Power207.9 hp
Number of Cylinders6
Engine MakeDEUTZ
MakeDeutz
Emission Tier LevelEU Stage IIIA / EPA Tier 3

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab121 in
Wheelbase125 in
Overall Length245 in
Overall Width95 in
Width Over Tires95 in
Overall Length w/o Blade245 in

Tires & Wheels

Tires & Wheels specifications
TiresTR 23.1-26 12 PR

Drum

Drum specifications
Vibration Frequency 127 vpm
Centrifugal Force - High74,412 lb
Drum Diameter70 in
Nominal Amplitude - High0 in
Pad Height4 in
Number of Pads150
Centrifugal Force - Low54,629 lb
Nominal Amplitude - Low0 in
Vibratory Frequency 230 vpm
Pad Surface Area24 in³
Vibration Frequency1,620 – 1,800 vpm
Drum thickness1 in
