Hamm

H12i P

Padfoot Compactor

Operating Weight
29,740 lb
Max Speed
7.5 mph
Drum Width
84 in
Gross Power
114.0 hp
All padfoot compactors

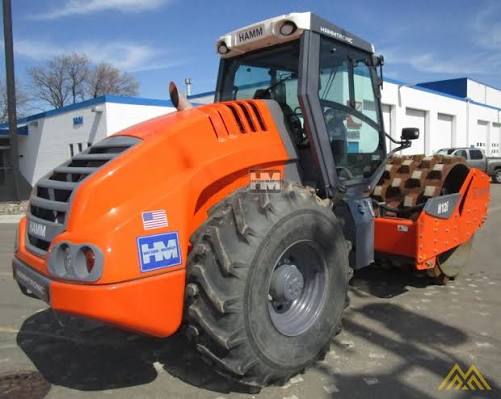

Hamm H12i P Padfoot Compactor
1 / 5
Image 1 of 5
Image: machine.market

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Operating Weight29,740 lb
Operating weight ROPS26,698 lb
Max Speed7.5 mph
Fuel Capacity74.0 gal
Oscillating angle10 °
Smooth drum Operating weight with Cab27,249 lb
DEF tank capacity8.5 gal

Engine

Engine specifications
Engine ModelTCD 3.6 L4
Power Measured @2,300 rpm
Gross Power114.0 hp
Net Power114.0 hp
Number of Cylinders4
Engine MakeDEUTZ
Emissions levelEU Stage IV / EPA Tier 4

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab118 in
Wheelbase124 in
Overall Length230 in
Overall Width90 in
Turning Radius - Inside152 in

Tires & Wheels

Tires & Wheels specifications
TiresTR 23.1-26 12 PR

Drum

Drum specifications
Drum Width84 in
Vibration Frequency 130 vpm
Centrifugal Force - High55,303 lb
Drum Diameter66 in
Nominal Amplitude - High0 in
Pad Height4 in
Number of Pads140
Centrifugal Force - Low30,574 lb
Nominal Amplitude - Low0 in
Vibratory Frequency 236 vpm
Drum thickness1 in
