Hamm

H14i P

Padfoot Compactor

Operating Weight
35,362 lb
Max Speed
7.5 mph
Drum Width
84 in
Gross Power
154.3 hp
All padfoot compactors

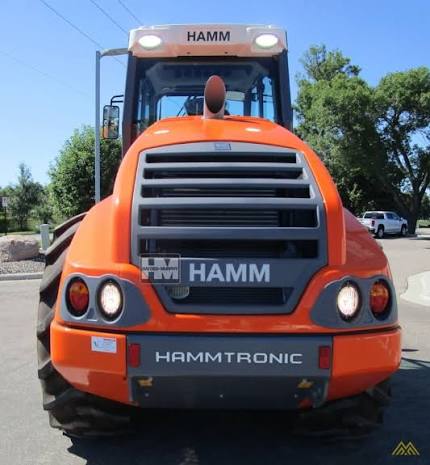

Hamm H14i P Padfoot Compactor
1 / 5
Image 1 of 5
Image: rdoequipment.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight35,362 lb
Operating weight ROPS31,405 lb
Max Speed7.5 mph
Fuel Capacity74.0 gal
Oscillating angle10 °
Smooth drum Operating weight with Cab31,978 lb
DEF tank capacity8.5 gal

Engine

Engine specifications
Engine ModelTCD 4.1 L4
Gross Power154.3 hp
Net Power154.3 hp
Number of Cylinders4
Engine MakeDEUTZ
Emissions levelEU Stage IV / EPA Tier 4

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab118 in
Wheelbase124 in
Overall Length230 in
Overall Width90 in
Turning Radius - Inside152 in

Tires & Wheels

Tires & Wheels specifications
TiresTR 23.1-26 12 PR

Drum

Drum specifications
Drum Width84 in
Vibration Frequency 130 vpm
Centrifugal Force - High55,978 lb
Drum Diameter66 in
Nominal Amplitude - High0 in
Pad Height4 in
Number of Pads140
Centrifugal Force - Low37,318 lb
Nominal Amplitude - Low0 in
Vibratory Frequency 236 vpm
Drum thickness1 in
