Hamm

H16i P

Padfoot Compactor

Operating Weight
40,609 lb
Max Speed
6.3 mph
Drum Width
84 in
Gross Power
154.3 hp
All padfoot compactors

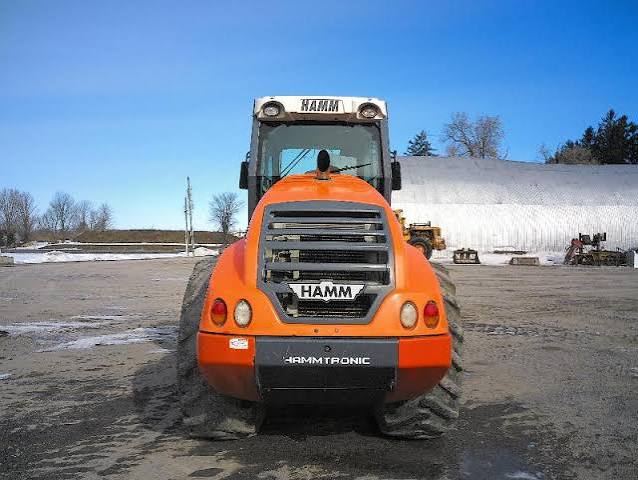

Hamm H16i P Padfoot Compactor
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Operating Weight40,609 lb
Operating weight ROPS36,817 lb
Max Speed6.3 mph
Fuel Capacity74.0 gal
Oscillating angle10 °
Smooth drum Operating weight with Cab37,236 lb
DEF tank capacity8.5 gal

Engine

Engine specifications
Engine ModelTCD 4.1 L4
Power Measured @2,300 rpm
Gross Power154.3 hp
Net Power154.3 hp
Number of Cylinders4
Engine MakeDEUTZ
Emissions levelEU Stage IV / EPA Tier 4

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab118 in
Wheelbase124 in
Overall Length235 in
Overall Width91 in
Turning Radius - Inside152 in

Tires & Wheels

Tires & Wheels specifications
TiresTR 23.1-26 12 PR

Drum

Drum specifications
Drum Width84 in
Vibration Frequency 128 vpm
Centrifugal Force - High73,737 lb
Drum Diameter66 in
Nominal Amplitude - High0 in
Pad Height4 in
Number of Pads140
Centrifugal Force - Low58,226 lb
Nominal Amplitude - Low0 in
Vibratory Frequency 231 vpm
Drum thickness1 in
