Hamm

H20i C P

Padfoot Compactor

Operating Weight
46,143 lb
Max Speed
6.3 mph
Drum Width
84 in
Gross Power
214.6 hp
All padfoot compactors

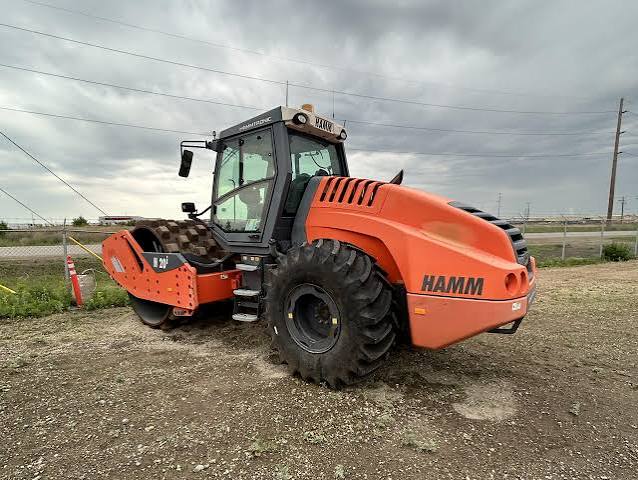

Hamm H20i C P Padfoot Compactor
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight46,143 lb
Max Speed6.3 mph
Fuel Capacity74.0 gal
Oscillating angle10 °
Smooth drum Operating weight with Cab45,845 lb
DEF tank capacity8.5 gal

Engine

Engine specifications
Engine ModelTCD 6.1 L6
Power Measured @2,300 rpm
Gross Power214.6 hp
Net Power214.6 hp
Number of Cylinders6
Engine MakeDEUTZ
Emissions levelEU Stage IV / EPA Tier 4

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab118 in
Wheelbase129 in
Overall Length260 in
Overall Width91 in
Turning Radius - Inside166 in

Tires & Wheels

Tires & Wheels specifications
TiresTR 23.1-26 12 PR

Drum

Drum specifications
Drum Width84 in
Vibration Frequency 127 vpm
Centrifugal Force - High74,412 lb
Drum Diameter70 in
Nominal Amplitude - High0 in
Pad Height4 in
Number of Pads150
Centrifugal Force - Low54,404 lb
Nominal Amplitude - Low0 in
Vibratory Frequency 230 vpm
Drum thickness1 in
