Hamm

H7i P

Padfoot Compactor

Operating Weight
15,256 lb
Max Speed
7.8 mph
Drum Width
66 in
Gross Power
73.3 hp
All padfoot compactors

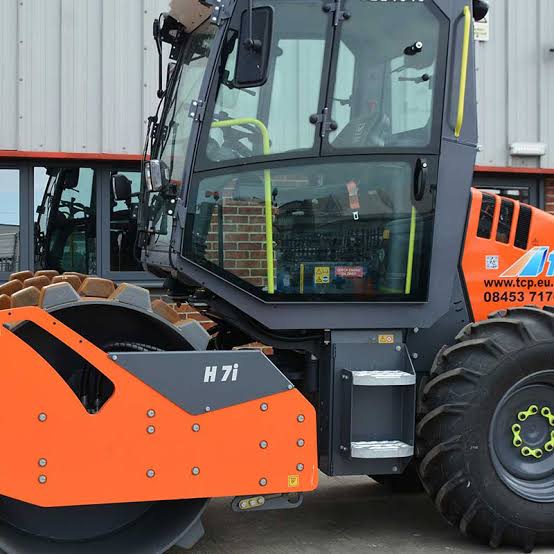

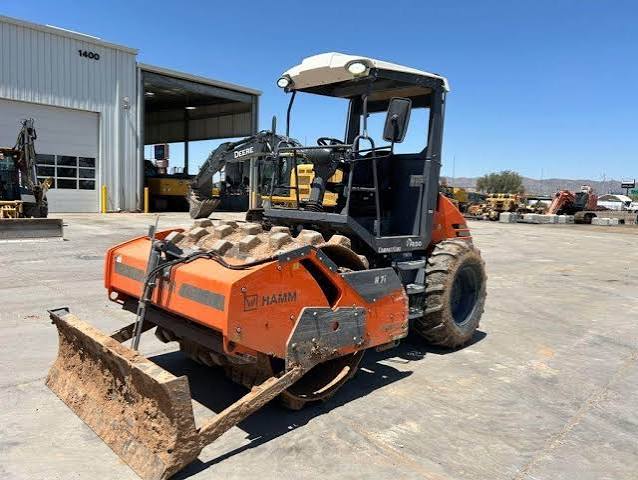

Hamm H7i P Padfoot Compactor
1 / 5
Image 1 of 5
Image: gmwjcb.com

Specifications

27 data points

Operating Specifications

Operating Specifications specifications
Operating Weight15,256 lb
Operating weight ROPS13,647 lb
Max Speed7.8 mph
Fuel Capacity32.5 gal
Oscillating angle10 °
Smooth drum Operating weight with Cab14,132 lb

Engine

Engine specifications
Engine ModelV3307-CR-T
Gross Power73.3 hp
Net Power73.3 hp
Number of Cylinders4
Engine MakeKUBOTA
Emissions levelEU Stage IIIB / EPA Tier 4

Dimensions

Dimensions specifications
Ground Clearance13 in
Height - Top of Cab115 in
Wheelbase91 in
Overall Length174 in
Overall Width73 in
Turning Radius - Inside131 in

Tires & Wheels

Tires & Wheels specifications
TiresTR 14.9-24 8 TL

Drum

Drum specifications
Drum Width66 in
Vibration Frequency 130 vpm
Centrifugal Force - High28,101 lb
Drum Diameter54 in
Nominal Amplitude - High0 in
Pad Height80 in
Number of Pads84
Drum thickness1 in
